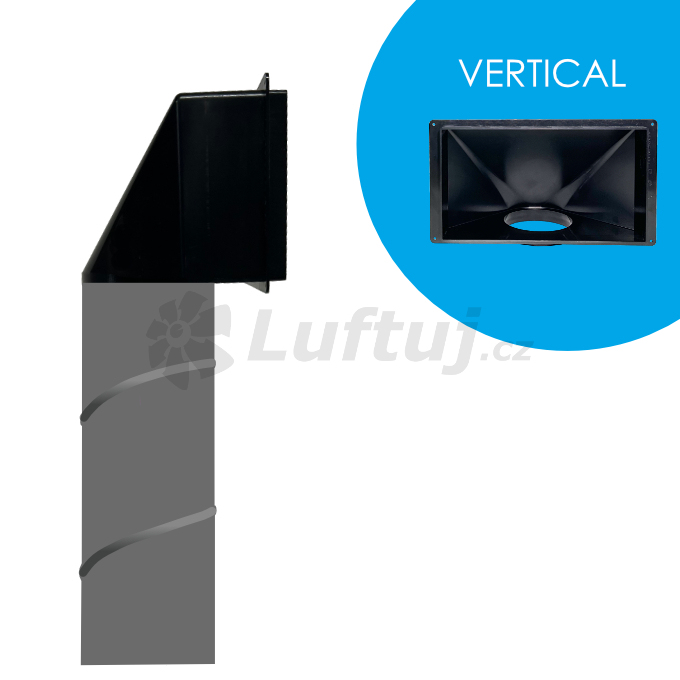

LUFTOMET Flat Plenum Box 100 mm, Vertical, H2
Products under the LUFTOMET® Flat name offer a comprehensive system of compatible components – plenum boxes and grilles. The Flat system is designed to solve ventilation needs primarily in wooden buildings and the renovation of family houses and apartments. It is ideal for situations where minimal spatial requirements for the ventilation distribution are essential. Additionally, LUFTOMET® Flat grilles provide an excellent aesthetic solution.
Technical information:
Our Flat Plenum Boxes are:
• sized for flexible plastic pipes with a diameter of 75 and 90 mm and metal ducting SPIRO 100 mm
• manufactured in 15 basic variants, where it is possible to choose whether the spigot contains a control damper or not
• sized to be easily installed in plasterboard, drywall, partitions or bulkhead, boxes or false ceiling
• thanks to the extension pieces, it can also be used in masonry constructions
• equipped with sealing rings to ensure a high tightness of the connection between the plenum box and the duct
• suitable for the supply and exhaust of normally polluted air (without chemical substances, etc.)
• compatible with all types of LUFTOMET® Flat Grilles
• made of hygienic ABS

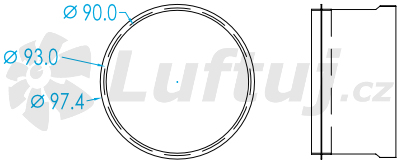

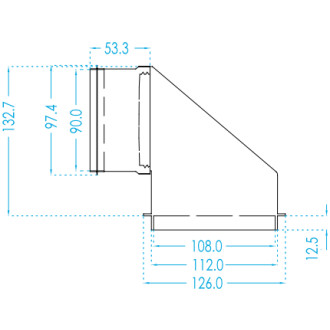

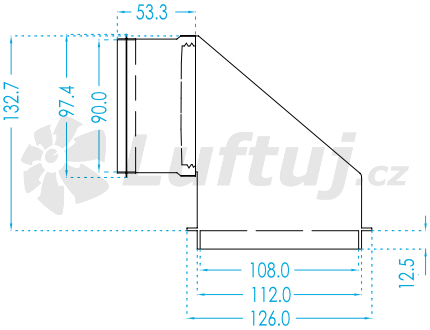

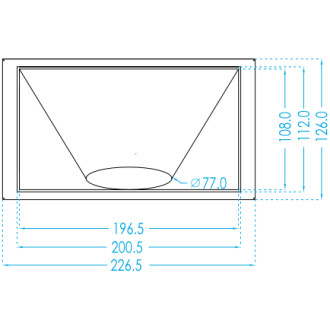

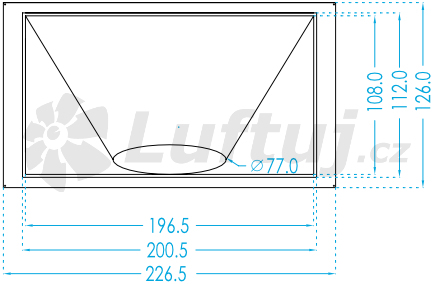

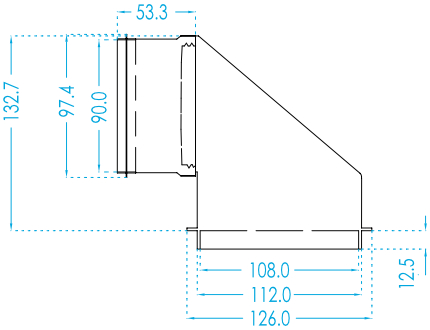

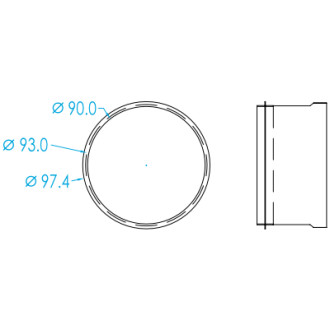

Dimensions:
Assembly:
Examples of grille installation:
Duct connection:
Construction details:
Coding:
Package includes:
Box with spigot with or without a control damper. The package for the 75 and 90 mm dimensions includes a sealing and a locking ring. For the 100 mm size, the sealing ring is fitted on the spigot. Supplied without anchoring accessories.
Packed in stretch film.
