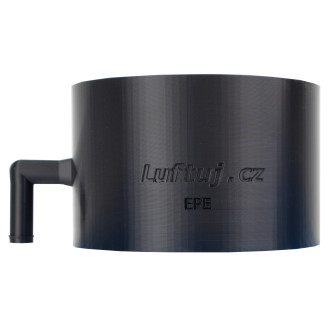

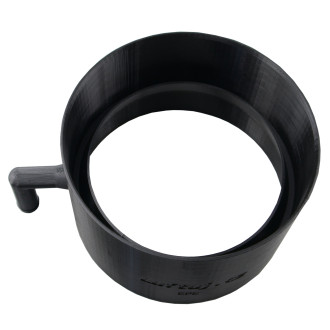

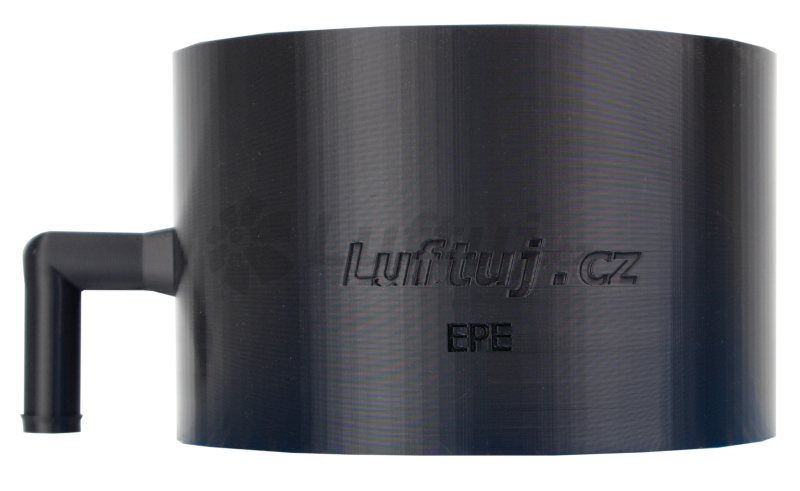

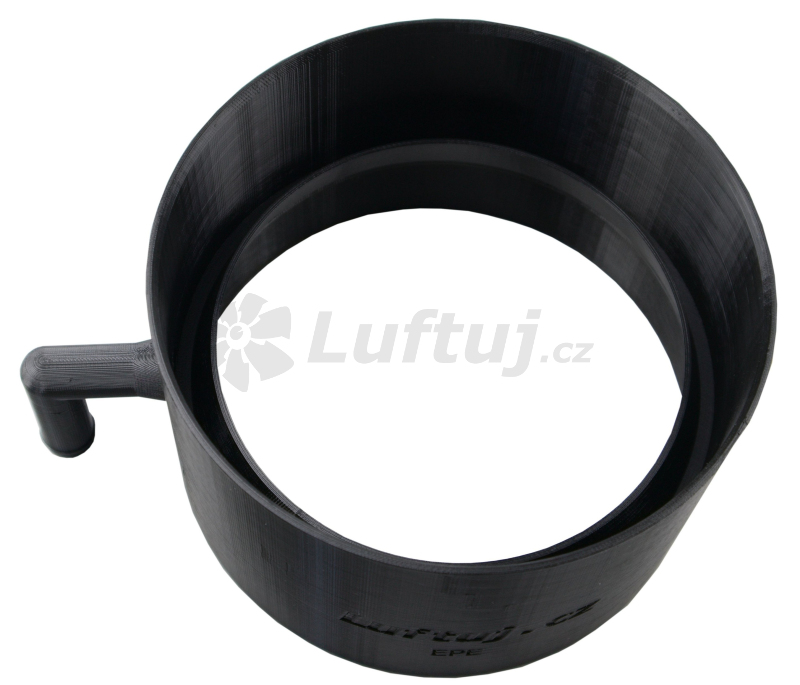

LUFTooL Trap - Condensing Piece for EPE Pipes - 125 mm

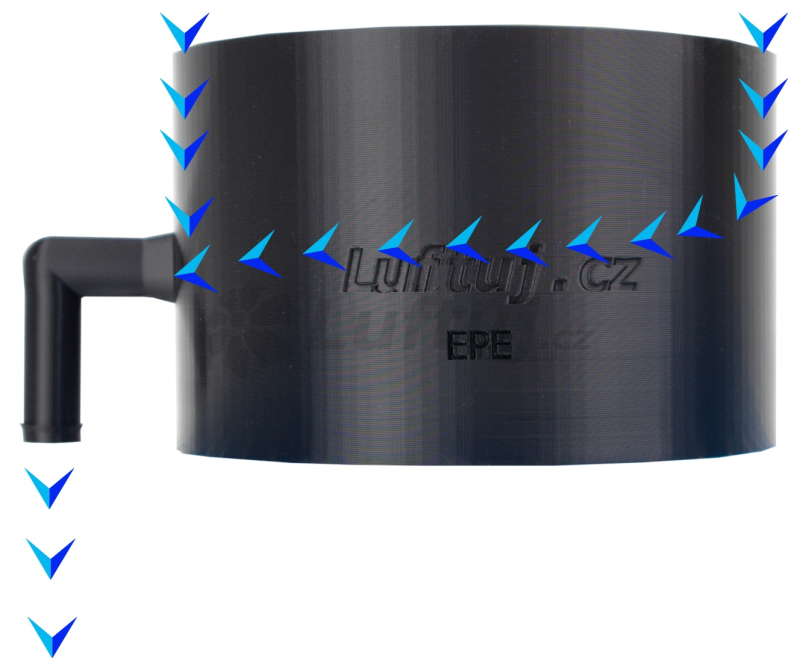

LUFTooL Trap products are designed to collect condensed water on the inside of the pipe in the ventilation systems. They are usually installed on pipes that blow air from the interior through the unheated part of the house. The condensation piece drains condensate from the duct walls outside the duct.

Technical information:

Our Condensing Pieces are:

• very tight - designed to save space compared to other condensate collection solutions
• equipped with a gutter elbow that is compatible with conventional condensate drainage hoses
• made of PETG material, thus minimising the formation of thermal bridges
• designed to be installed in vertical and horizontal pipes (horizontal pipes must always be in a gradient towards the drain)
• efficient, depending on the flow rate and type of pipe material, they are able to collect up to 91% of condensed moisture
• manufactured in three variants (for EPE, EPS and SPIRO pipes)

Made of PETG material:

• which is a flexible and strong material
• has high impact resistance and durability
• is made from health-safe materials
• has low shrinkage on cooling
• is 100% recyclable

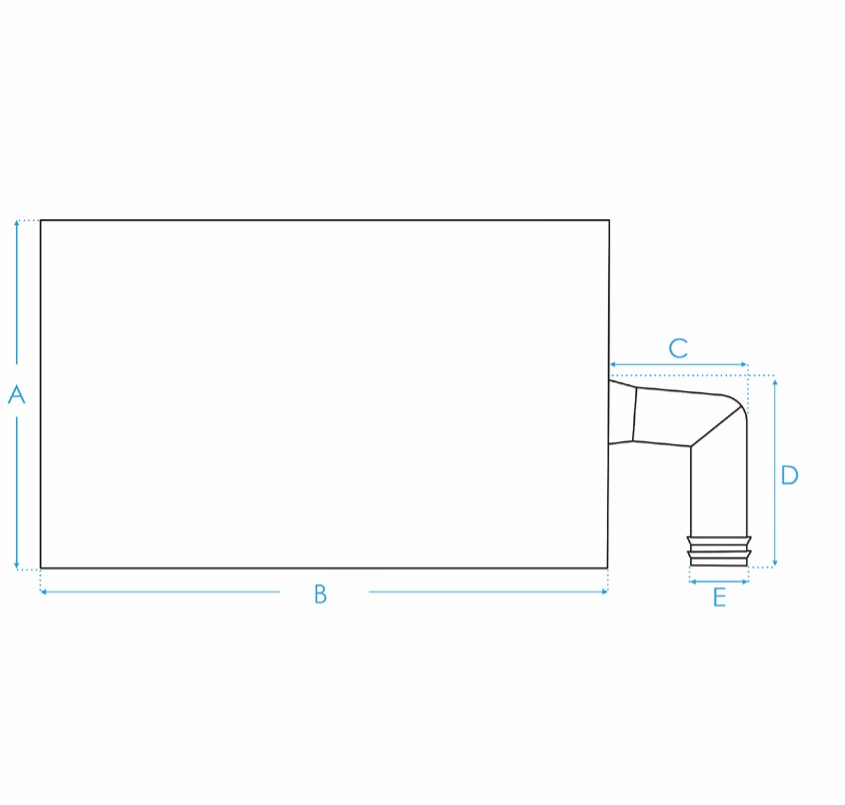

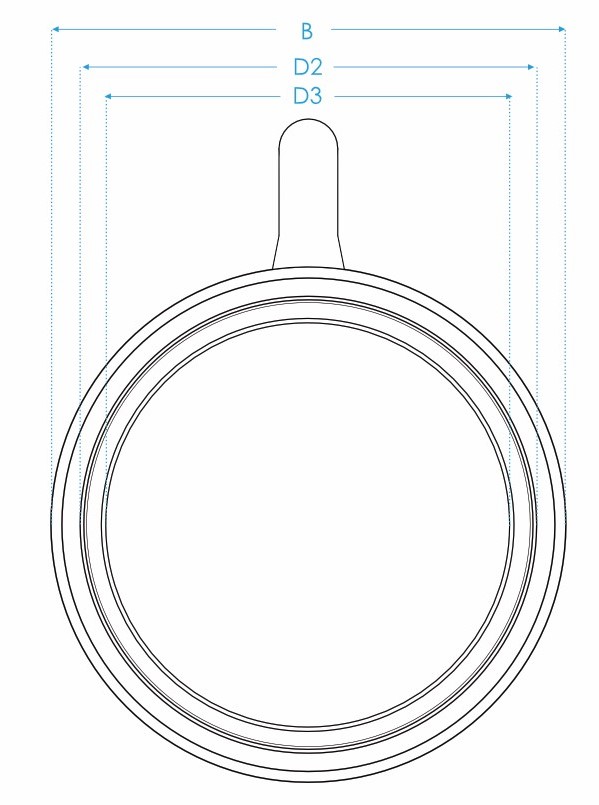

Dimensions:

Assembly:

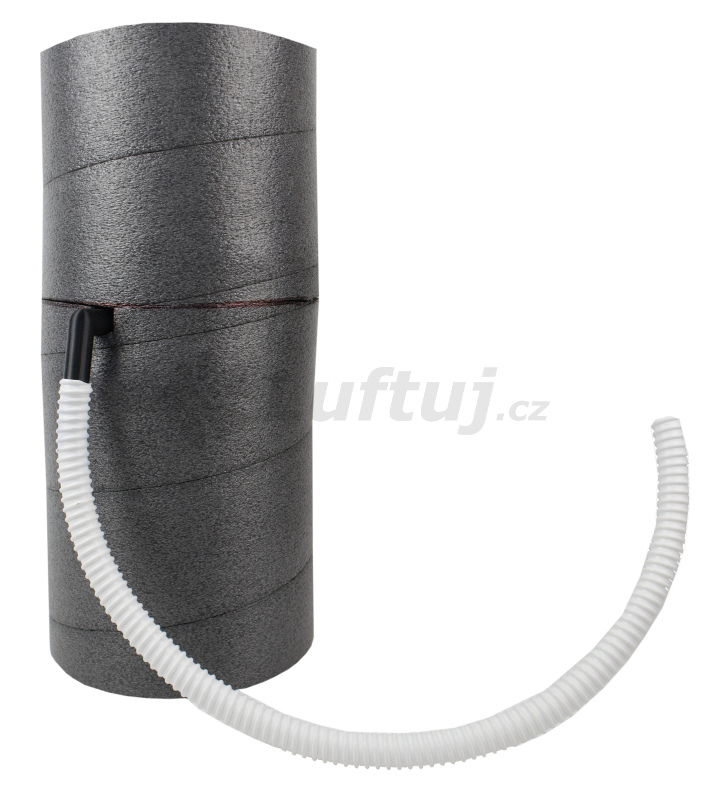

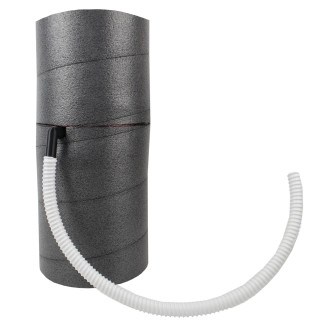

Cut the pipe in the place where you want to place the condensation piece. Vertical piping at the heated boundary of the thermal envelope is ideal.

Place a condensation piece on the bottom of the pipe and cut a hole for the plastic elbow as tightly as possible with a snap-off knife. Insert the condensation piece and fit the top parts of the pipe.

Seal the joint airtight with aluminum tape and thermally secure with at least two layers of thermal tape.

Connect the condensate drain hose to the elbow and connect it to the sewer through a flooded siphon (beware of freezing).

Coding:

Package includes:

Condensation piece, manual. Packed in a box or foil.

Technical sheet:

Manual:

This product is made Luftuj LtD in the Czech Republic and exported to several European countries.
