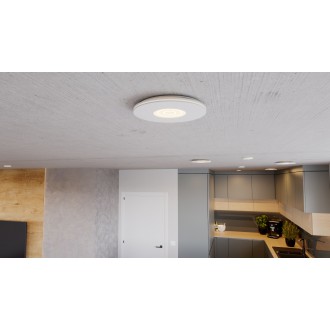

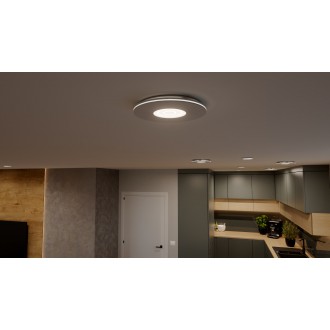

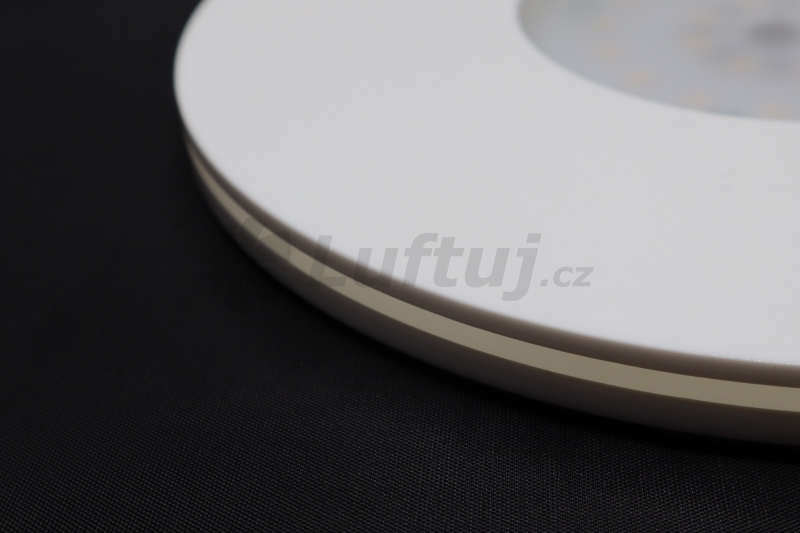

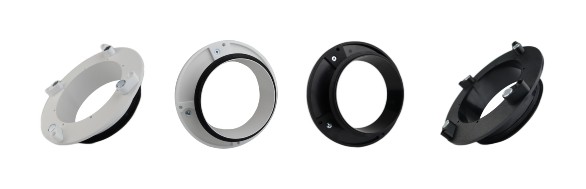

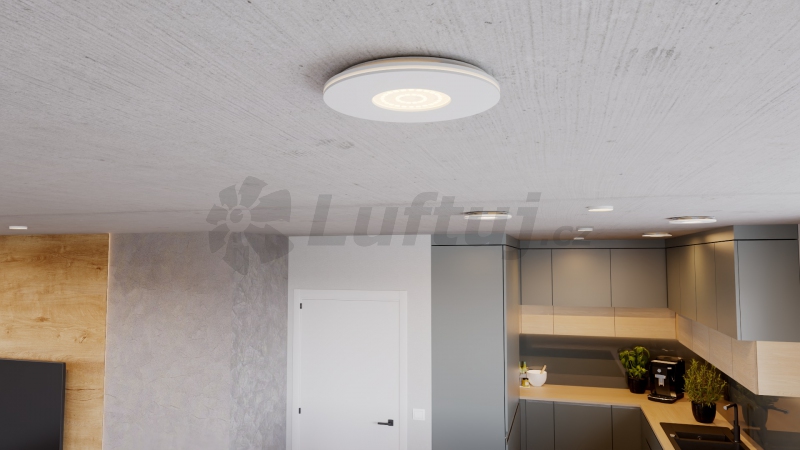

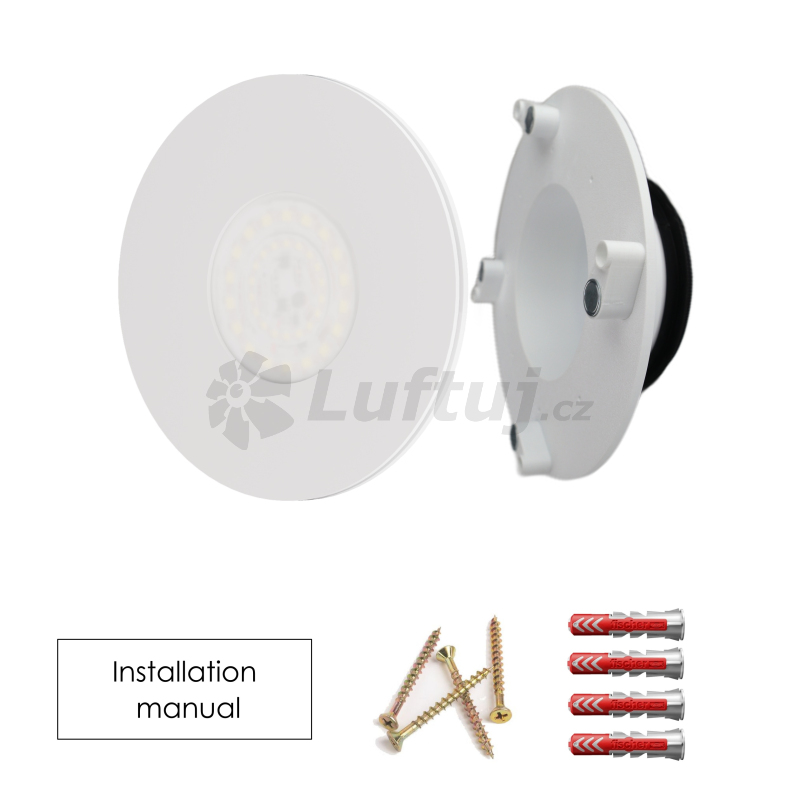

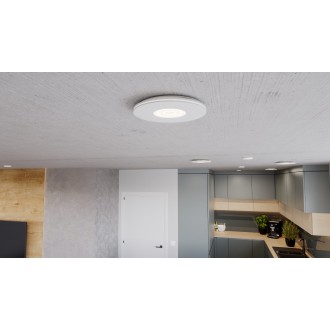

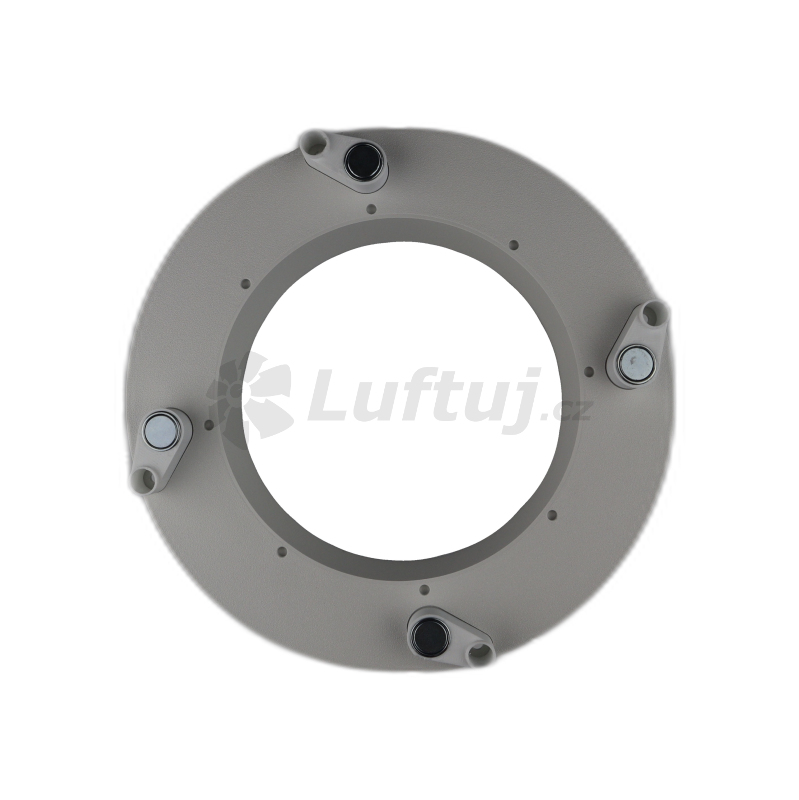

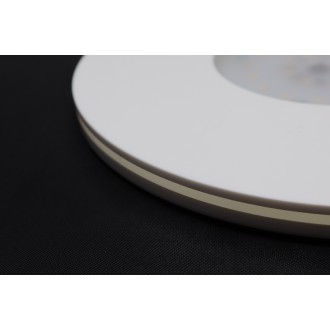

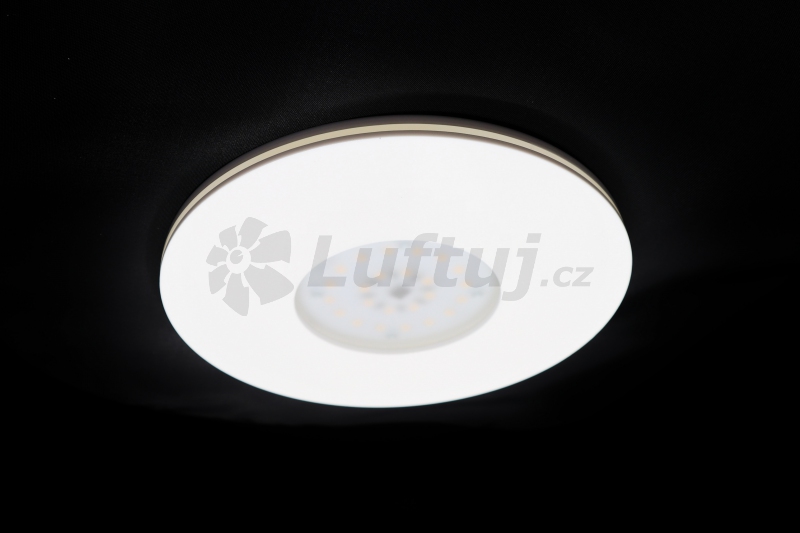

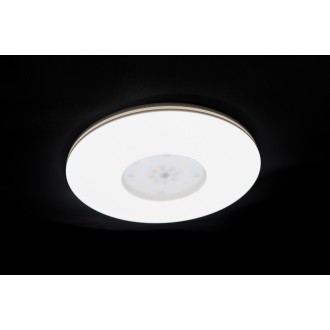

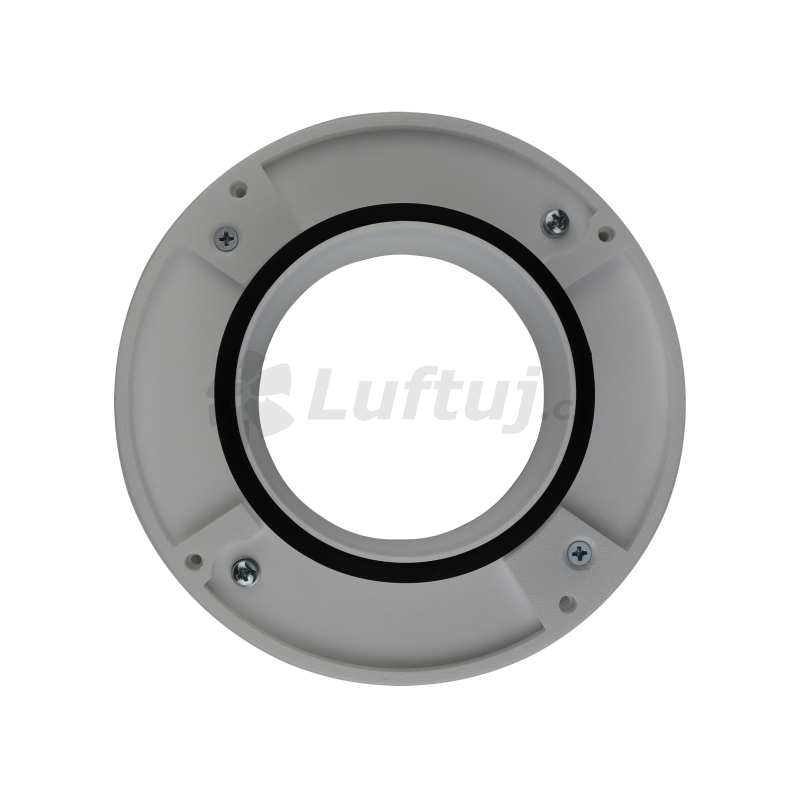

LUFTOMET Singlepack Lumen Illuminated Air Diffuser plastic circle shine white, white mounting frame

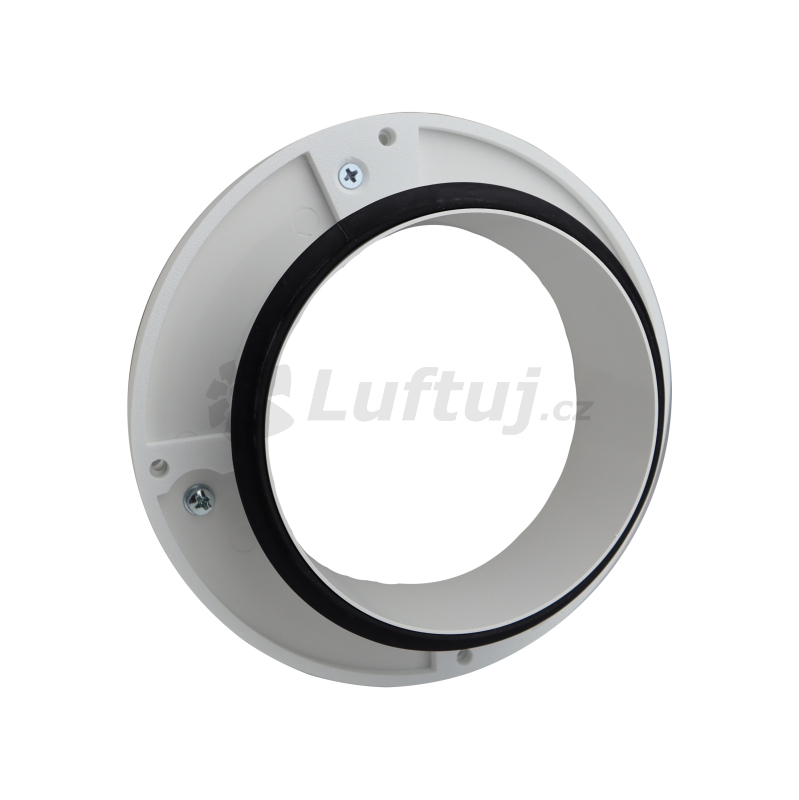

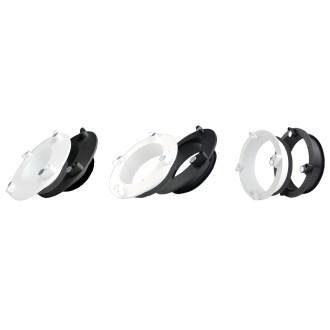

LUFTOMET socket filter set Filter ring with G3 fabric suitable for installation in LUFTOMET sockets ALWAYS INSTALL THE FILTER CLOTH SO THAT THE COARSER (BLUE) SIDE IS THE FIRST IN CONTACT WITH THE AIR FLOW. Package includes: - 1x filter ring with sealing rubber - 3x G3 filter fabric cut-out

Spare part for LUFTOMET LUMEN - ceiling. Luminaire diameter 90 mm. Variants (color temperature): - cold = 6500 K - neutral = 5000 K - warm = 3000 K Characteristic: (in combination with LUMEN body) Luminosity: 650 lm Power supply: 12 V IP curfew rating: IP20 Power consumption: 7W The procedure for replacing the LED module is described in the instructions here: https://luftomet.com/download-1/

Dimmer for LUFTOMET Lumen 12V Voltage 5-24V. Maximum total power consumption of LED tape or LED bulbs 144W - up to 5 outlets with LUFTOMET Lumen ventilation can be connected. This dimmer has a remote control, with which you can dim the light source either continuously or in larger steps - 100%, 50%, 25%. Alternatively, it can be dimmed using the Bright + and - function. You can also choose between predefined light effects such as flashing, light transitions, etc. In the light effects mode, you can also control their speed. The remote control is powered by 1 CR2025 button cell battery, which is included in the package. You can purchase a spare battery from us. Watch the instructional video on how to connect the dimmer to the rest of the system and how to control it with a remote control.

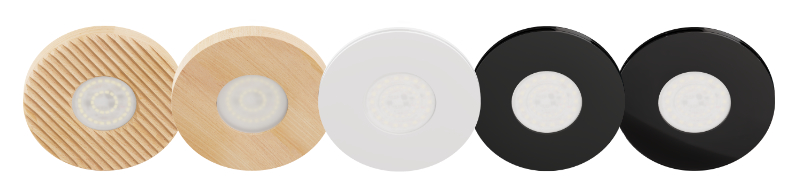

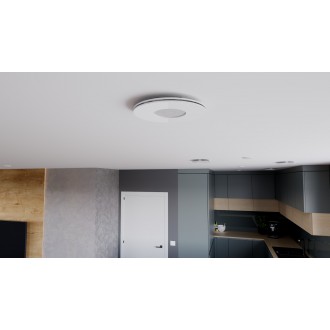

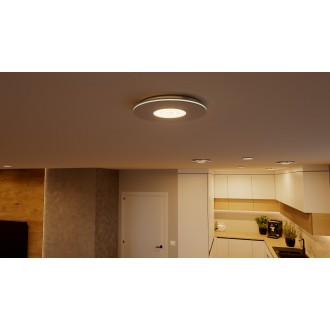

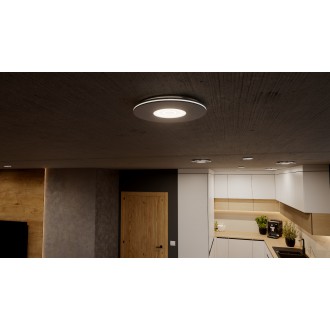

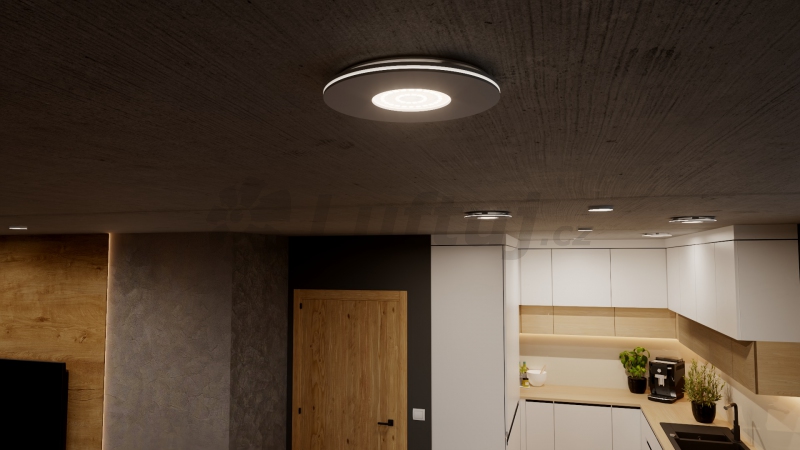

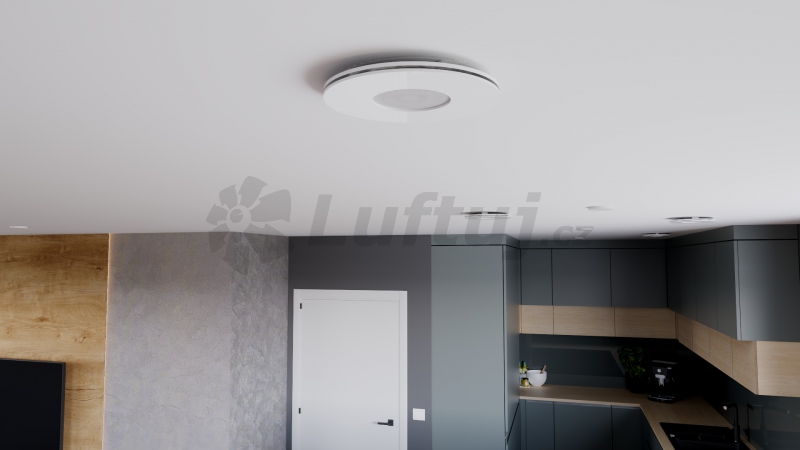

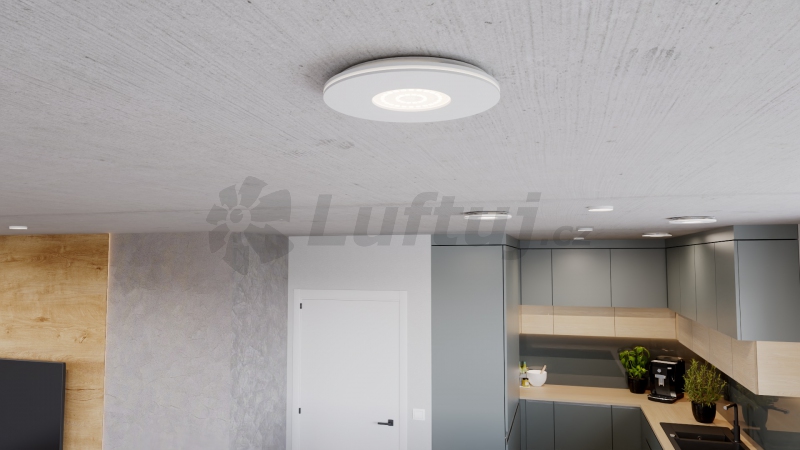

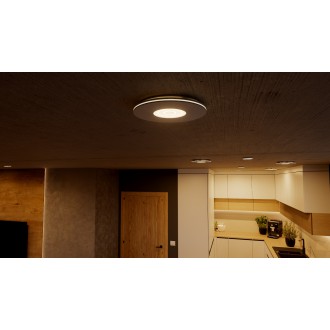

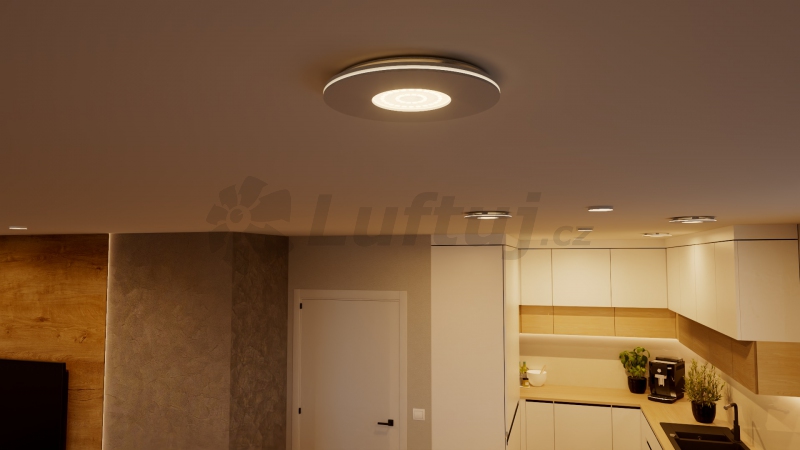

LUFTOMET® Lumen are end elements of ventilation systems with integrated LED panel. They are used to supply fresh air or exhaust-polluted indoor air in ventilation systems with heat recovery. LUFTOMET® Lumen is an innovative product designed to integrate illumination and ventilation. This cutting-edge solution resolves the collision of these two crucial aspects in any modern space.

LUFTOMET® Lumen are end elements of ventilation systems with integrated LED panel. They are used to supply fresh air or exhaust-polluted indoor air in ventilation systems with heat recovery. LUFTOMET® Lumen is an innovative product designed to integrate illumination and ventilation. This cutting-edge solution resolves the collision of these two crucial aspects in any modern space.

The popular LUFTOMET® Round Box with connections for flexible ducting of 75 mm or 90 mm is suitable for installation in ceilings, walls, or drywall boxes due to its collar. The box is used in ventilation systems with heat recovery and is designed for installations with a minimum installation gap above the ceiling or where it isn’t possible to secure the ducting directly to the structural framework. Dimensions: Compatibility: Outlets - it is fully compatible with LUFTOMET® Sky, Jet, and Lumen outlets with a diameter of 125 mm. In this combination, the outlet’s neck is directly anchored into the collar of the LUFTOMET® Round Box Low without the need for plugs. Ducting - the neck of the box is designed to accommodate flexible plastic ducts with an outer diameter of 75 mm and 90 mm, such as Dalflex, ComfoTube, ED-FLEX, ROZ-DUOTEC, Ubbink Air Excellent, Klimaflex, Octopus AE48c, HEATPEX Aria, Kermi x-well, FLXP, Atera GreenPipe, Lindab Indom, etc. Installation Procedure: Rough Construction Cut the duct to the appropriate length (preferably using the LUFTooL Duct Cutter) and secure it approximately 1 meter from the planned outlet position. A sealing ring is placed into the second groove of the duct. Slide the duct into the neck of the box. Insert the spike into the prepared hole in the body of the box so that it fits between the ribs of the duct. The duct can be rotated but cannot be pulled out. Sealing is guaranteed by the O-ring. The box is capped with a 125 mm lid for securing. After Installing Drywall and Painting Place the box into the cut-out hole so that its outer collar rests against the upper edge of the drywall. The duct must not exert pressure on the box or the drywall. Insert the neck supplied with the outlet into the box. The collar of the neck is secured with screws through the drywall into the collar of the box. The design plate of the outlet can be easily attached to the neck using magnets (for the LUFTOMET® Sky, Jet, and Lumen outlets). Packaging Includes: Plastic box made of PP-R material, 125 mm lid, two locking spikes, one sealing ring for ducting. Packed loosely into the box. The outlet, including the neck/mounting frame, is not included in the packaging. Manufactured in the Czech Republic.

Products under the LUFTOMET® Flat name offer a comprehensive system of compatible components – plenum boxes and grilles. The Flat system is designed to solve ventilation needs primarily in wooden buildings and the renovation of family houses and apartments. It is ideal for situations where minimal spatial requirements for the ventilation distribution are essential. Additionally, LUFTOMET® Flat grilles provide an excellent aesthetic solution

Products under the LUFTOMET® Flat name offer a comprehensive system of compatible components – plenum boxes and grilles. The Flat system is designed to solve ventilation needs primarily in wooden buildings and the renovation of family houses and apartments. It is ideal for situations where minimal spatial requirements for the ventilation distribution are essential. Additionally, LUFTOMET® Flat grilles provide an excellent aesthetic solution.

LUFTOMET® Lumen are end elements of ventilation systems with integrated LED panel. They are used to supply fresh air or exhaust-polluted indoor air in ventilation systems with heat recovery. LUFTOMET® Lumen is an innovative product designed to integrate illumination and ventilation. This cutting-edge solution resolves the collision of these two crucial aspects in any modern space.

Description These controllers are used to suppress noise and regulate airflow in ventilation systems with heat recovery. They are installed in ceiling boxes or in pipes just before the end element on the supply and exhaust pipes.  The PF regulator is made of special plastic acoustic foam with very high damping properties. Adjusting the airflow is simple and quick - just turn the bottom ring. Use The silencer is designed for use in circular air distribution systems and is mounted directly in front of the valve or nozzle. It can be used for supply and exhaust pipes. It is used for smooth regulation of airflow and noise suppression of ventilation systems. This is especially useful in situations where the airflow is too high at a given location and control of the terminal element is not possible or generates a lot of noise. Construction The shock absorber consists of two foam discs: - damping element made of soft PUR acoustic polyurethane foam with excellent damping properties, coated on one side with a protective film - adjustment disc made of rigid polyethylene PE foam. Dimensions for a diameter of 125 mm:

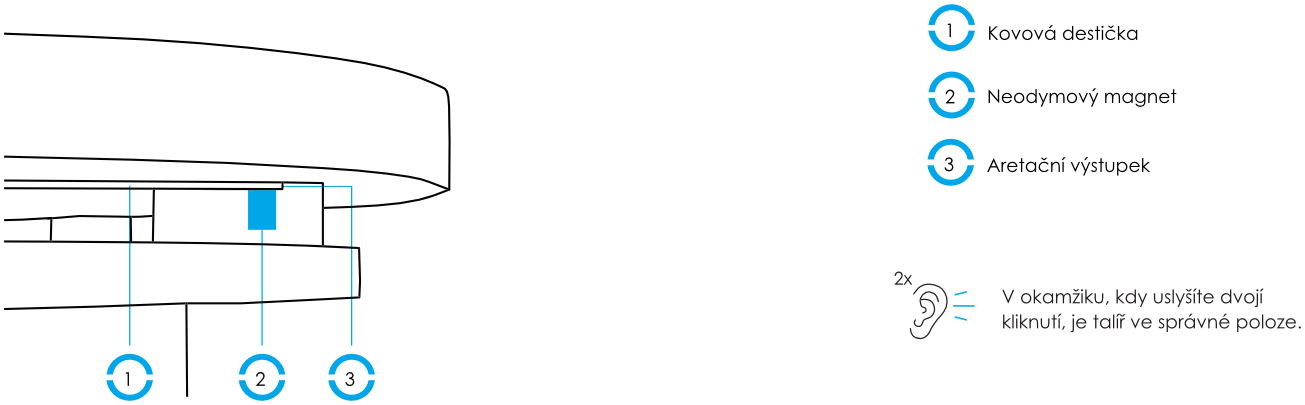

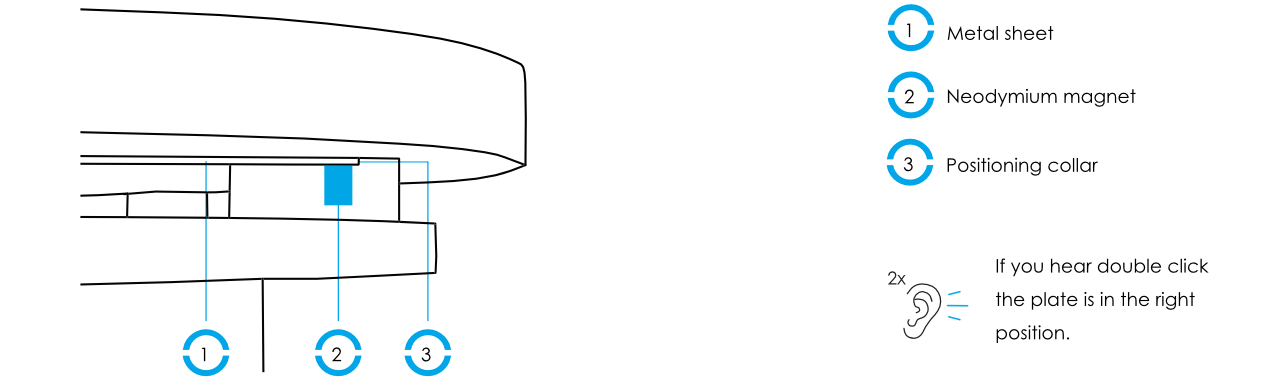

LUFTOMET® Jet is a range of elegant wall nozzles, specially designed for ventilation with heat recovery in houses and apartments. LUFTOMET® Jet provides supply and, where appropriate, exhaust of air with low pressure drops, excellent throw length and sound power levels. Installation and servicing are easy thanks to a unique attachment system using four neodymium magnets.
