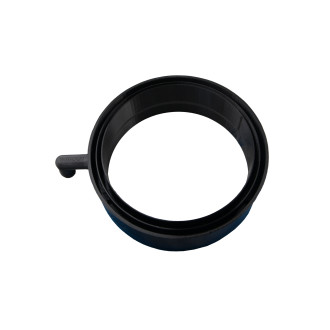

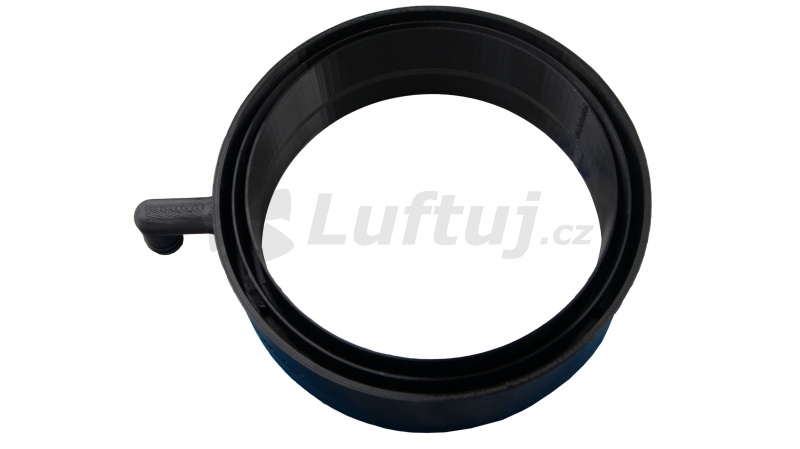

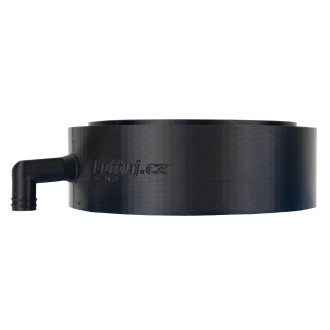

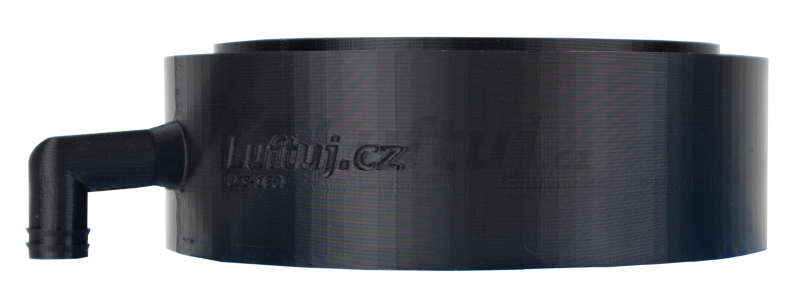

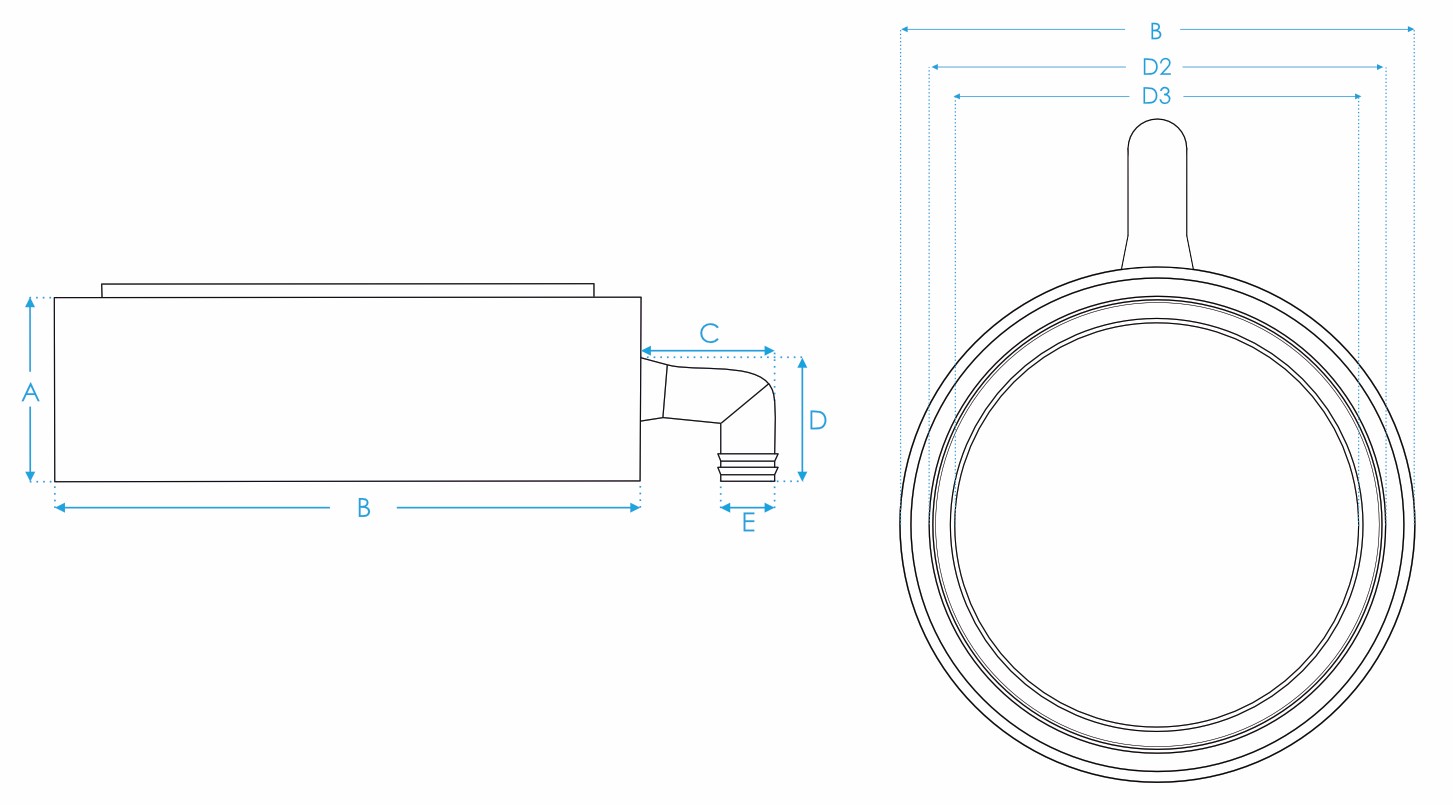

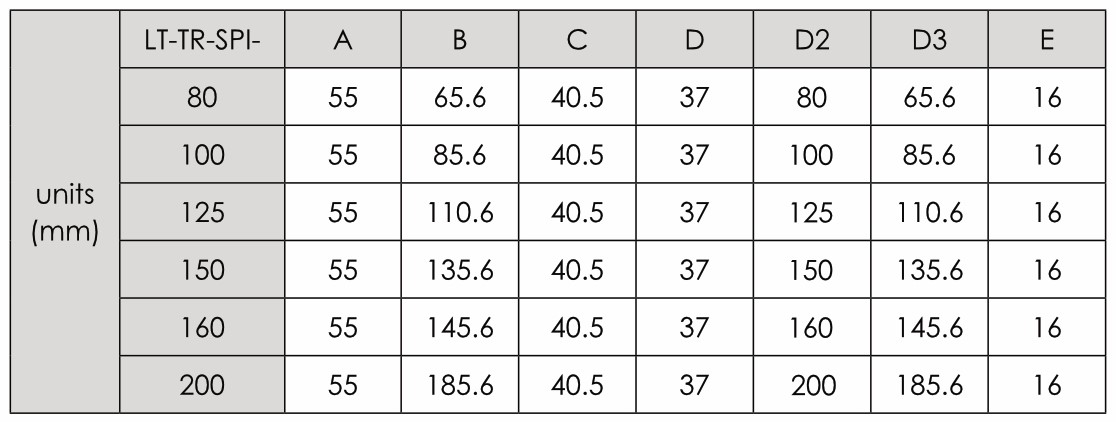

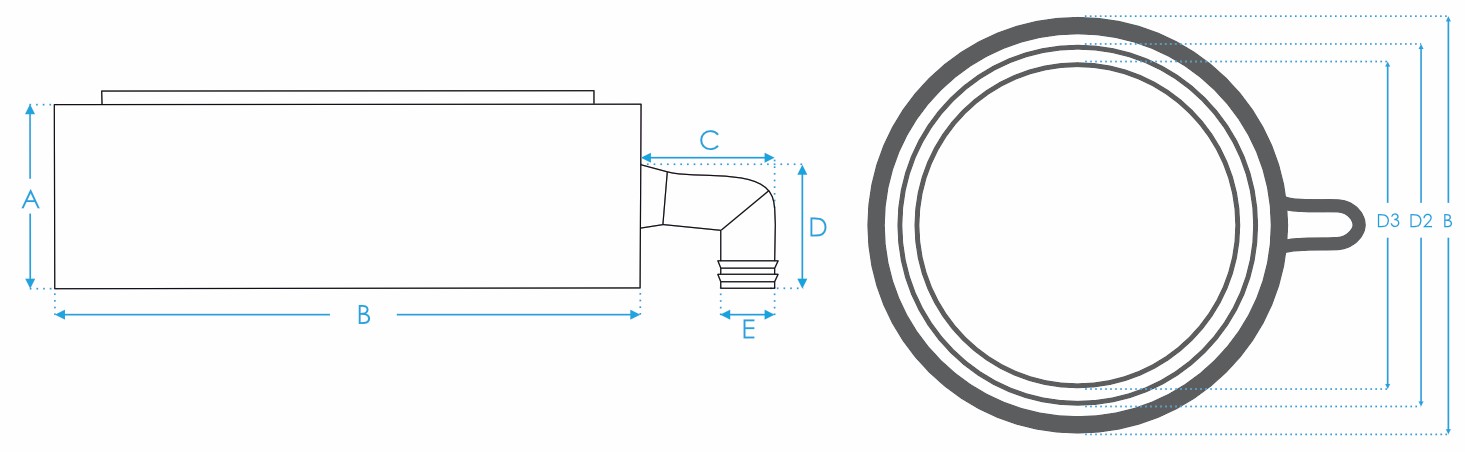

LUFTooL Trap Condensation Piece SPIRO - 200 mm

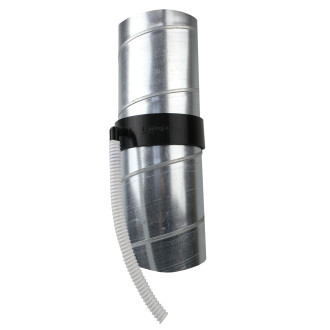

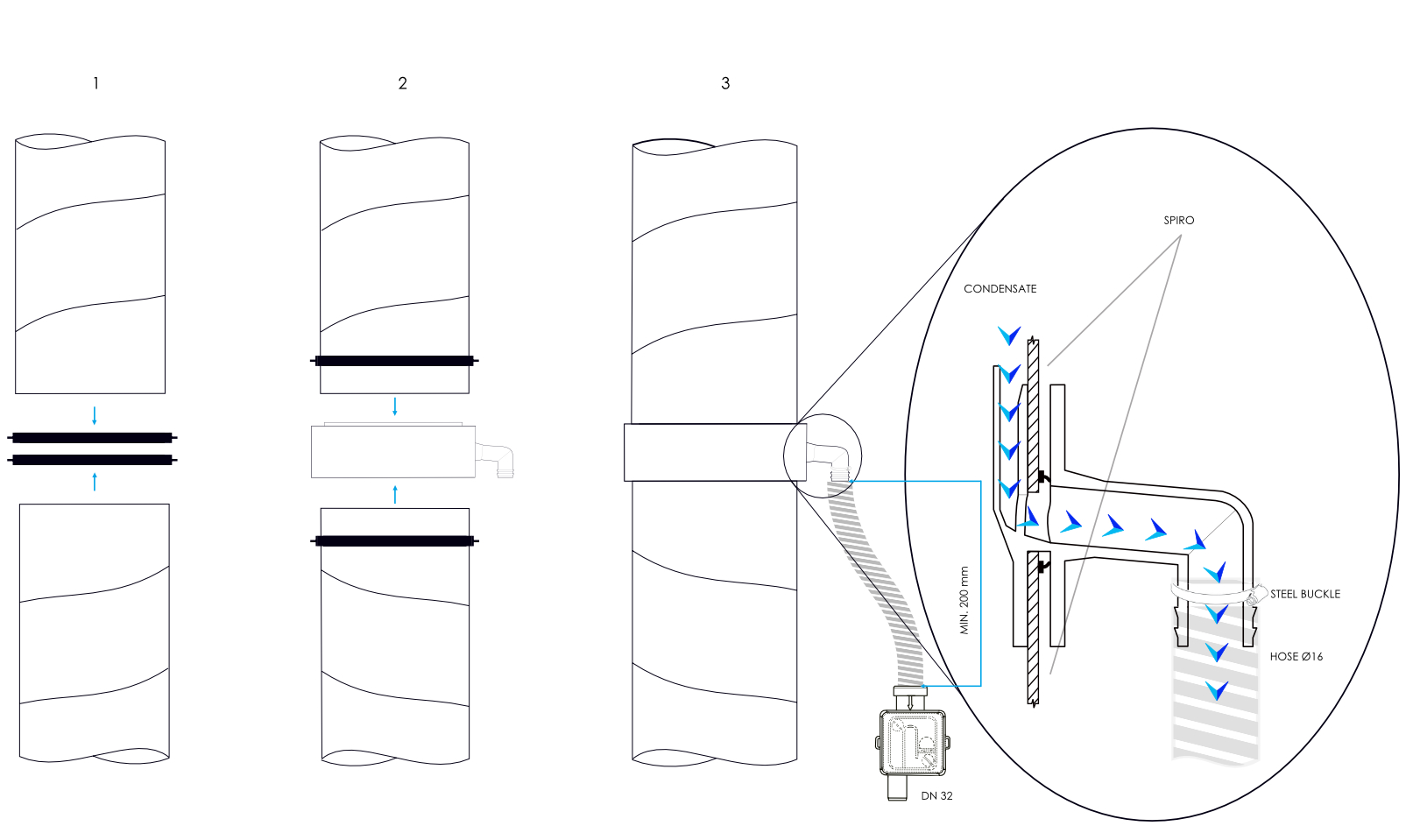

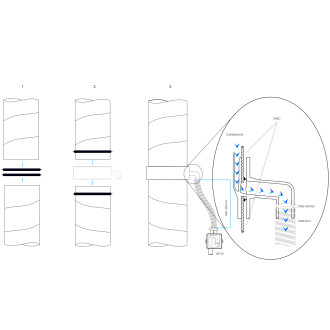

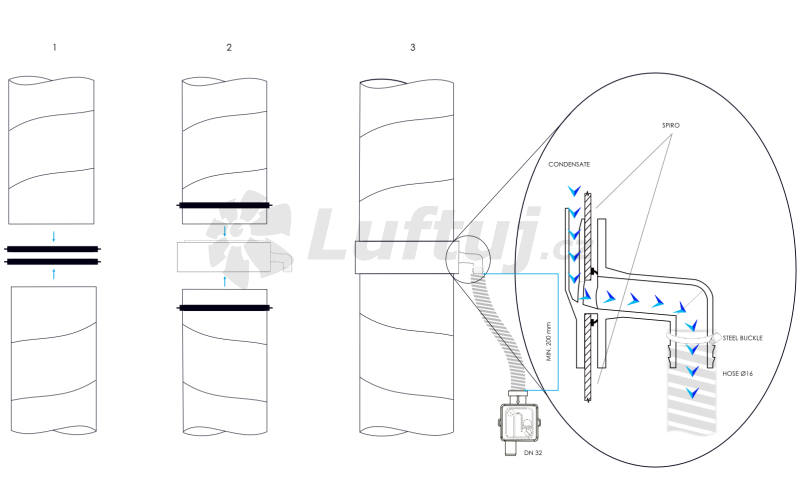

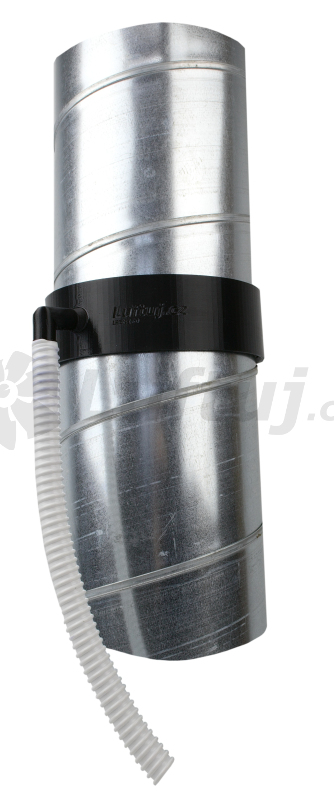

When the exhausted air has to pass through an unheated zone, it is necessary to ensure that only a minimum of condensate forms in the duct and that it does not mold and water does not flow into the heat recovery unit. LUFTooL Trap condensation pieces will help with this. The combination with pipes made of EPE or EPS insulators is ideal due to minimal thermal bridges.  The plastic condensate piece or condensate outlet is inserted into the HVAC thermal insulation pipe (EPE or EPS). In EPE and EPS designs, we offer it for air ducts with an inner diameter in sizes from 125 to 200 mm. The condensation piece removes excess moisture from the pipe. By inserting the condensation piece into the insulating material pipe, thermal bridges of this part of the system are eliminated. The condensate drain hose d16 is fully compatible with the condensate piece, which is only pushed onto the drip elbow. The LUFTooL Trap condensation piece is suitable for exhaust pipes (EHA) - from the heat recovery unit to the exterior. In winter, air flows in this duct with almost 100% humidity when the moisture condensation in the recuperator. It is placed above the heat recovery unit in a vertical duct. Technical information: - Height: 10 cm - Not compatible with SPIRO, KG, etc. piping!! only with piping according to designation - Compatible with D16 condensate drain hose PETG material: Flexible and strong High impact resistance and durability Harmless material Low shrinkage as it cools 100% recyclable Assembly: Cut the pipe in the place where you want to place the condensation piece. Vertical piping at the heated boundary of the thermal envelope is ideal. Place a condensation piece on the bottom of the pipe and cut a hole for the plastic elbow as tightly as possible with a snap-off knife. Insert the condensation piece and fit the top parts of the pipe. Seal the joint airtight with aluminum tape and thermally secure with at least two layers of thermal tape. Connect the condensate drain hose to the elbow and connect it to the sewer through a flooded siphon (beware of freezing). Package includes: 1) Condensation piece Packed loose in a box.

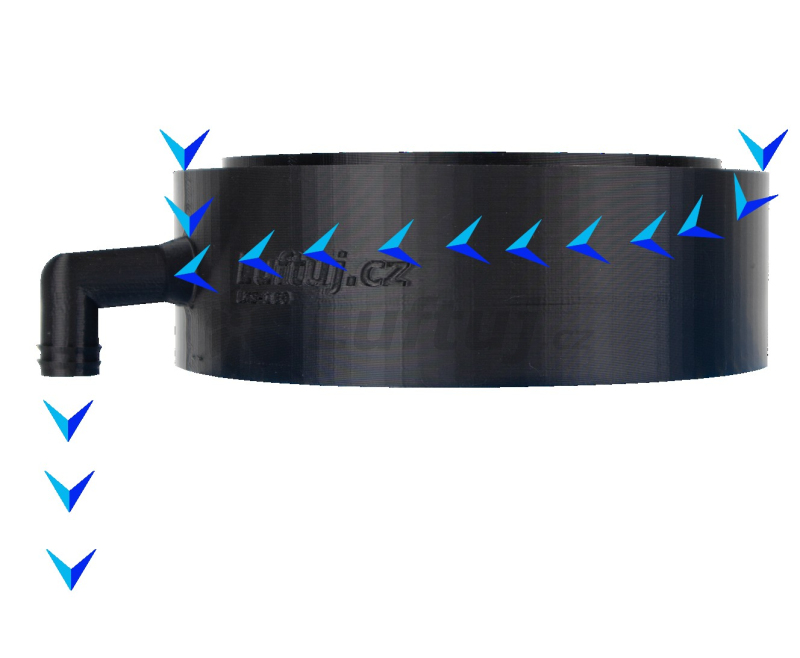

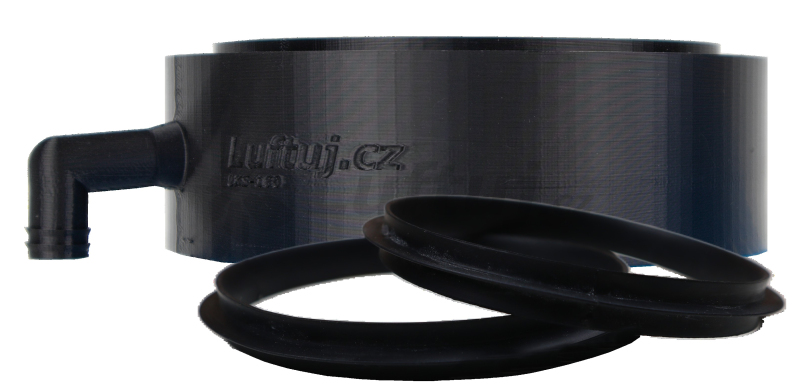

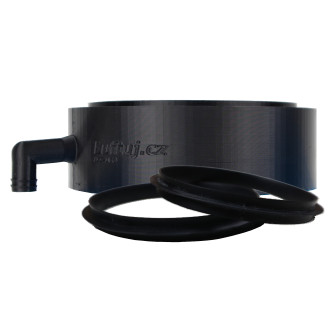

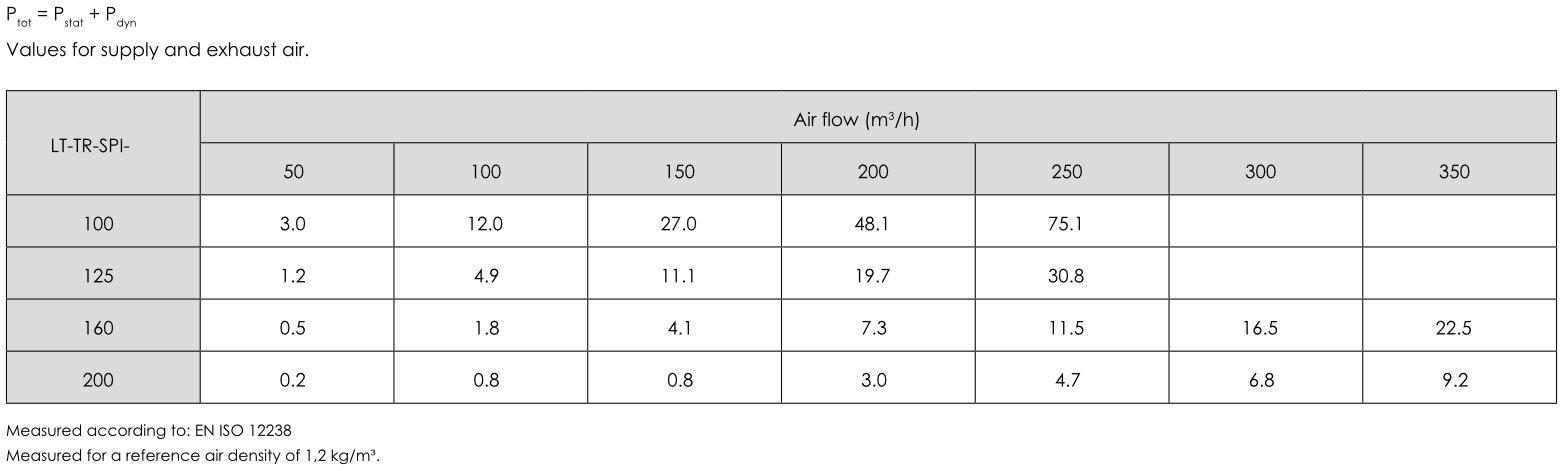

LUFTooL Trap products are designed to collect condensed water on the inside of the pipe in the ventilation systems. They are usually installed on pipes that blow air from the interior through the unheated part of the house. The condensation piece drains condensate from the duct walls outside the duct. Our Condensing Pieces are: • very tight - designed to save space compared to other condensate collection solutions • equipped with a gutter elbow that is compatible with conventional condensate drainage hoses • made of PETG material, thus minimising the formation of thermal bridges • designed to be installed in vertical and horizontal pipes (horizontal pipes must always be in a gradient towards the drain) • efficient, depending on the flow rate and type of pipe material, they are able to collect up to 91% of condensed moisture • manufactured in three variants (for EPE, EPS and SPIRO pipes) Made of PETG material: • which is a flexible and strong material • has high impact resistance and durability • is made from health-safe materials • has low shrinkage on cooling • is 100% recyclable Package includes: Condensation piece, 2 sealing rings for the SPIRO version, manual. Packed in a box or foil
