LUFTooL Spigot for Ducting (90 mm, female)

Replacement locking ring blue.

Extension cable for LUFTooL damper modules with automatic control. It is used to extend the wires between the actuator and the control unit. It is equipped with an M-male connector on one side and an F-female connector on the other. Length 20, 40, 60 cm.

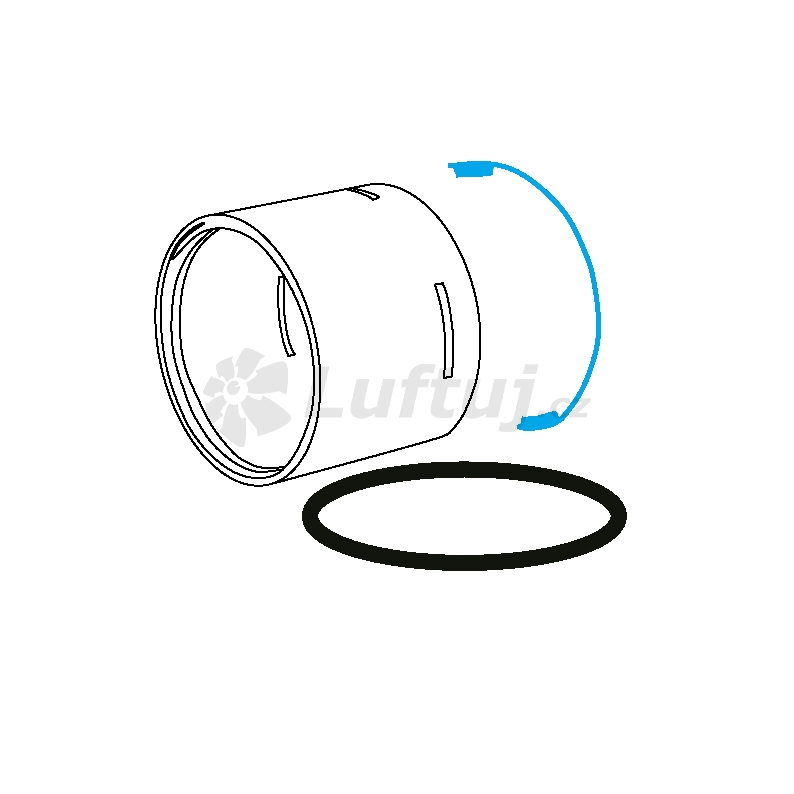

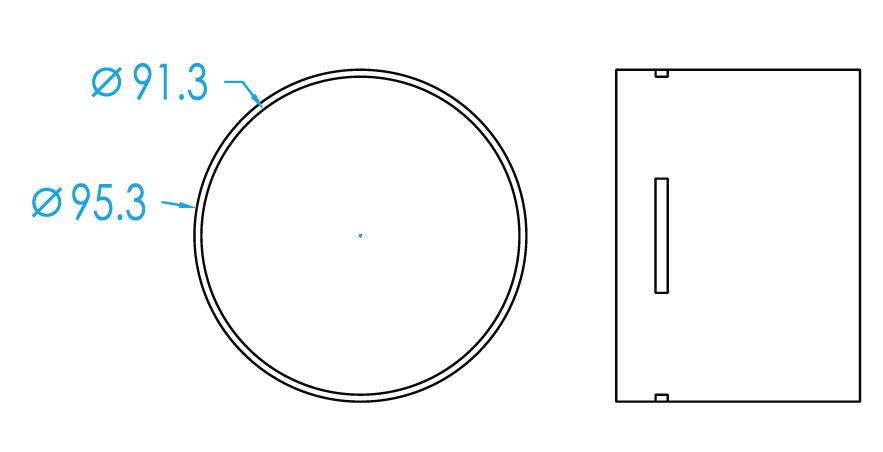

LUFTooL Spigot for Ducting (90 mm, male) The flexible pipe socket with an outer diameter of 90 mm is a universal modular element from the LUFTooL Distribute series. It consists of components that can be screwed together quickly and tightly into various units. The LUFTooL Distribute system is: • an innovative system for distributing air flow into individual zones/rooms • modular (its components can be combined) • designed for flexible plastic pipes with a diameter of 75 and 90 mm and traditional SPIRO pipes of 100 mm • designed for ventilation in family houses and small businesses with air flows through individual branches up to 100 m3/h • a very tight system achieves class D tightness according to ČSN EN 15727 • suitable for the supply and exhaust of commonly polluted air (without chemicals, etc.) • fully cleanable, pulling brushes through the damper can be done without dismantling the damper module • made of ABS and PETG Package includes: Plastic molding of the neck body (ABS), sealing and locking ring (PETG). Packed in a plastic bag.   The spigot can be screwed on one side, for example, to: LUFTooL Spigots (90mm, 75mm, 100 mm) LUFTooL Damper module with automatic or manual control    Assembly Screw on the appropriate module. Then put the seal on the pipe, insert it into the spigot and lock it with the blue locking ring.
