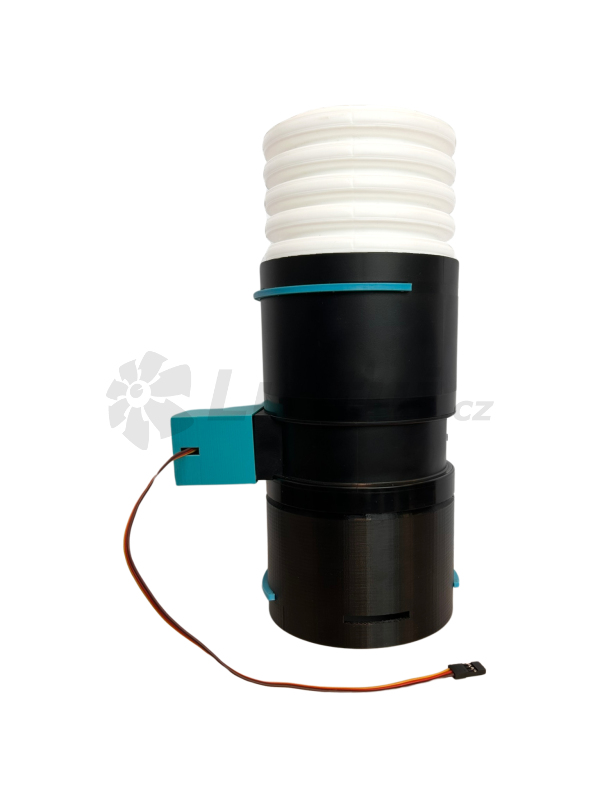

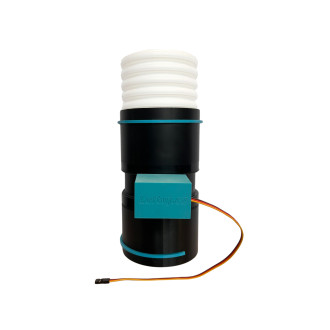

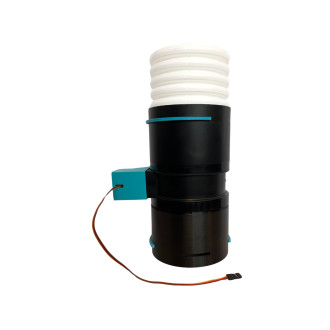

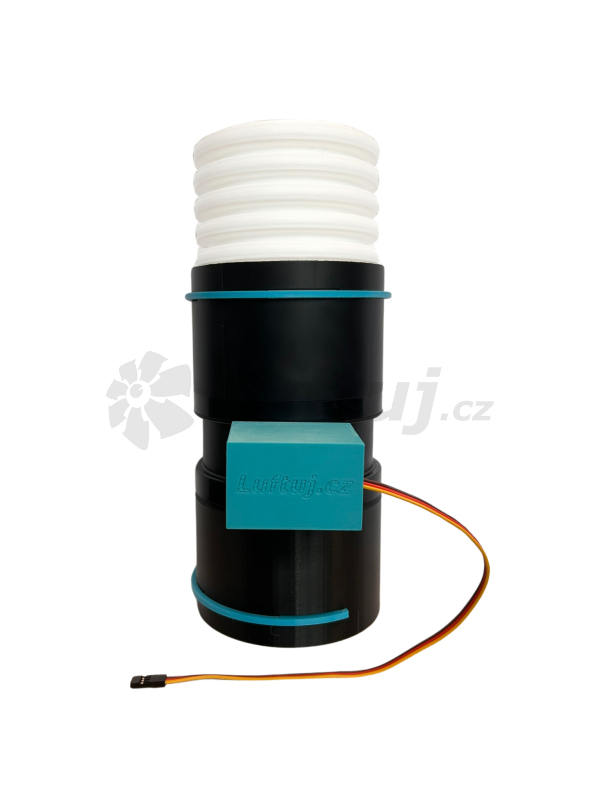

LUFtooL Damper set for Pipes Automatic 90 mm
LUFTool Damper set – is a damper designed for installation on flexible plastic air ducting with an outer diameter of 90 mm. The damper is operated by microservo motor.
LUFTooL Distribute is:
- An innovative system for distributing airflow to individual zones/rooms.
- Designed for flexible plastic ducts with a diameter of 90 mm and traditional SPIRO ducting with a diameter of 100 mm.
- Intended for ventilation in residential homes and small businesses with airflow rates in individual branches up to 100 m³/h.
- Very tight, achieving a tightness class D according to ČSN EN 15727.
- Suitable for supplying and extracting normally polluted air (without chemicals, etc.).
- Fully cleanable, as brushes can be passed through the damper without disassembling the damper module.
- Made from ABS and PETG materials.

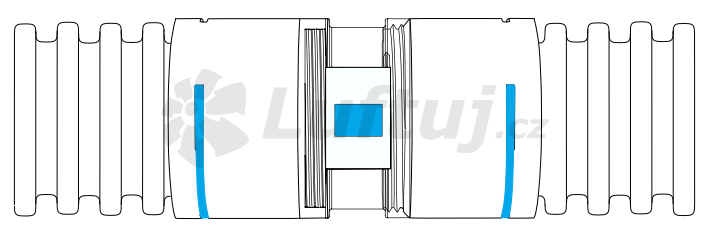

LUFTool Damper set includes the following components of the Distribute system:

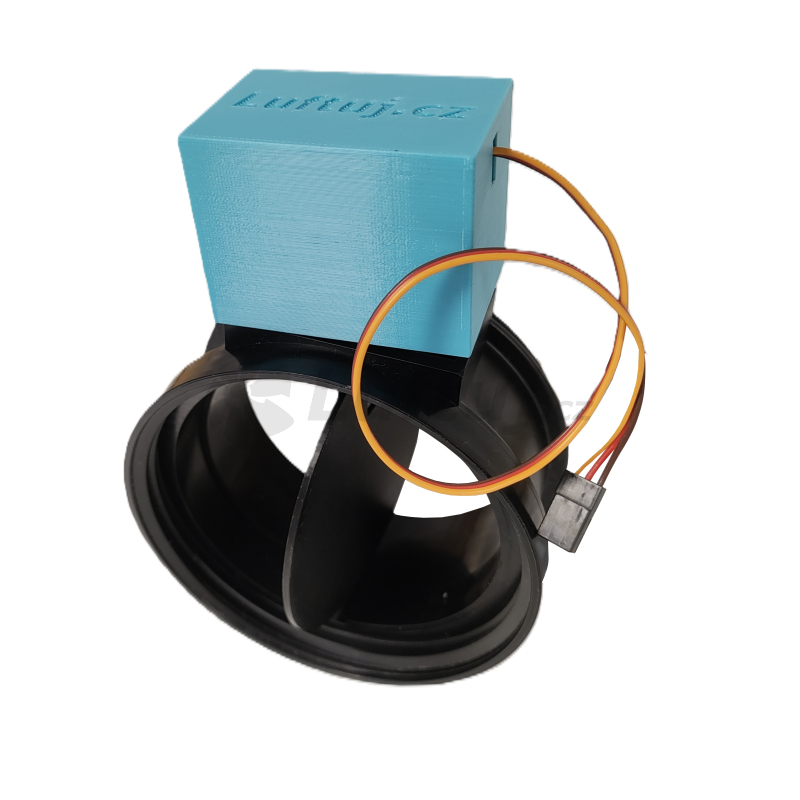

Damper Module available in automatic:
Technical Sheet:
Accessories
LUFTaTOR App – Multi-Zone Ventilation Control for Home Assistant
Are you looking for a smart solution to efficiently manage ventilation with heat recovery? The LUFTaTOR application for Home Assistant enables intelligent, multi-zone ventilation control based on air quality, time, or custom user scenarios. Thanks to the open Home Assistant platform, you gain full control over your ventilation and the ability to create advanced automations tailored precisely to your home’s needs.
Price on request
on order
LUFTaTOR Control - control module
LUFTaTOR Control is an innovative system that enables the regulation of both supply and exhaust airflow in heat recovery ventilation systems for residential houses and apartments. Thanks to its compatibility with the modular LUFTooL Distribute system, it allows airflow control of up to 100 m³/h, both in flexible plastic pipes with diameters of 75 mm and 90 mm, as well as in traditional SPIRO 100 mm ducting. It communicates with a central home automation system via MQTT or MODBUS protocols, making it possible to integrate LUFTaTOR into commonly available smart home systems such as Home Assistant, openHAB, Loxone, Domoticz, and others.
Price on request
on order
Extension cable for LUFTooL damper modules with automatic control. It is used to extend the wires between the actuator and the control unit. It is equipped with an M-male connector on one side and an F-female connector on the other. Length 20, 40, 60 cm.
Price on request
in stock
