LUFTooL Connector Multi-fit
The connector is part of the LUFTooL Distribute system, which is innovative and modular. The entire system is designed for easy air regulation, thanks to which it is possible to freely distribute the air flow in individual zones or rooms in family houses and smaller businesses.
However, individual elements can also be used for other elements such as ceiling and wall boxes. For example, the connector can be installed in any box with an appropriate opening.
The LUFTooL Distribute system is:
• an innovative system for distributing air flow into individual zones/rooms
• modular (its components can be combined)
• designed for flexible plastic pipes with a diameter of 75 and 90 mm and traditional SPIRO pipes of 100 mm
• designed for ventilation in family houses and small businesses with air flows through individual branches up to 100 m3/h
• a very tight system achieves class D tightness according to EN 15727
• suitable for the supply and exhaust of commonly polluted air (without chemicals, etc.)
• fully cleanable, pulling brushes through the damper can be done without dismantling the damper module
• made of ABS and PETG

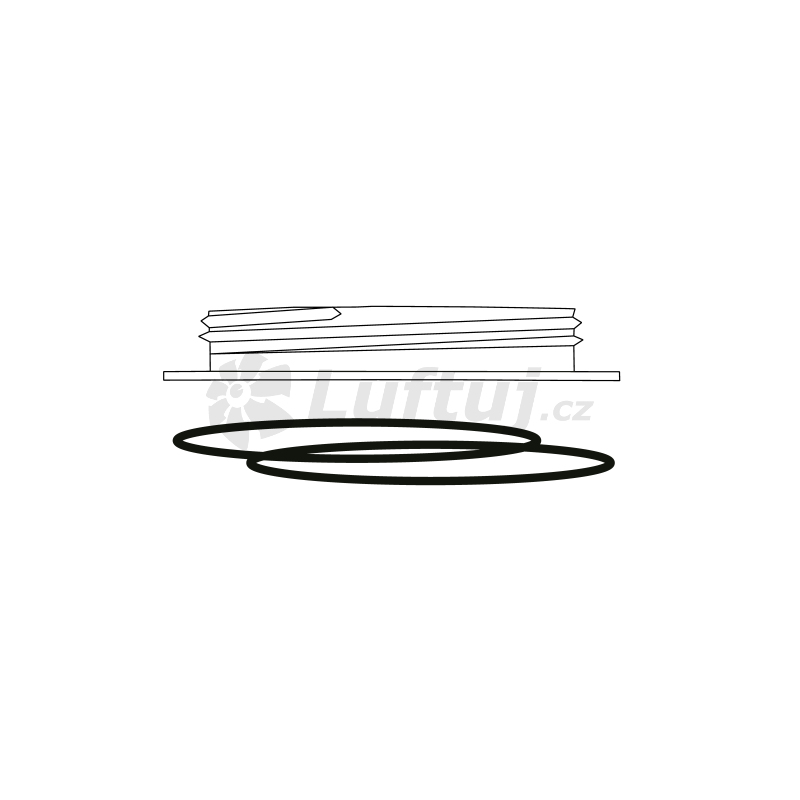

Package includes:
Connector (PETG), two sealing rings.
Packed in a plastic bag.
Assembly:
E.g. to:
LUFTooL damper module with automatic or manual control
LUFTooL pipe sockets (75, 90 and 100 mm)
Installation examples
Installation via connector or damper module to distribution box

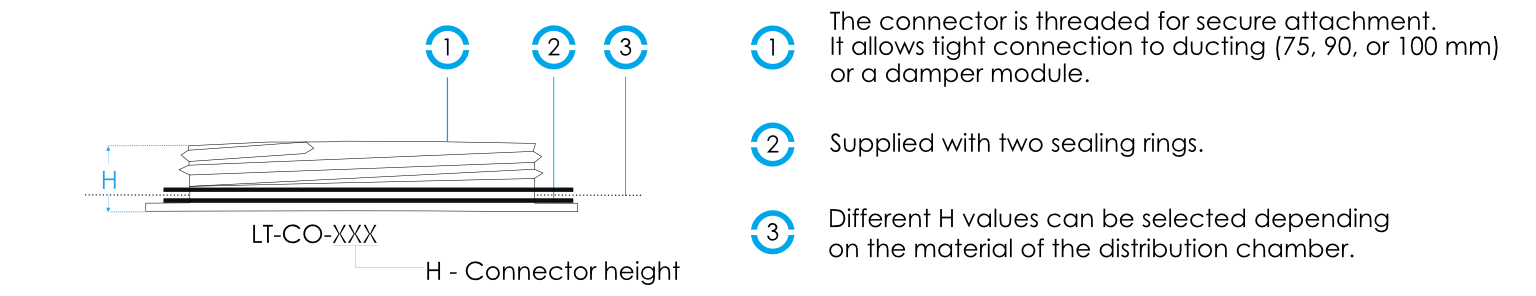

Technical Sheet:
