LUFTooL Spigot for Ducting (90 mm, male)

Products under the LUFTOMET® Flat name offer a comprehensive system of compatible components – plenum boxes and grilles. The Flat system is designed to solve ventilation needs primarily in wooden buildings and the renovation of family houses and apartments. It is ideal for situations where minimal spatial requirements for the ventilation distribution are essential. Additionally, LUFTOMET® Flat grilles provide an excellent aesthetic solution.

The popular LUFTOMET® Round Box with connections for flexible ducting of 75 mm or 90 mm is suitable for installation in ceilings, walls, or drywall boxes due to its collar. The box is used in ventilation systems with heat recovery and is designed for installations with a minimum installation gap above the ceiling or where it isn’t possible to secure the ducting directly to the structural framework. Dimensions: Compatibility: Outlets - it is fully compatible with LUFTOMET® Sky, Jet, and Lumen outlets with a diameter of 125 mm. In this combination, the outlet’s neck is directly anchored into the collar of the LUFTOMET® Round Box Low without the need for plugs. Ducting - the neck of the box is designed to accommodate flexible plastic ducts with an outer diameter of 75 mm and 90 mm, such as Dalflex, ComfoTube, ED-FLEX, ROZ-DUOTEC, Ubbink Air Excellent, Klimaflex, Octopus AE48c, HEATPEX Aria, Kermi x-well, FLXP, Atera GreenPipe, Lindab Indom, etc. Installation Procedure: Rough Construction Cut the duct to the appropriate length (preferably using the LUFTooL Duct Cutter) and secure it approximately 1 meter from the planned outlet position. A sealing ring is placed into the second groove of the duct. Slide the duct into the neck of the box. Insert the spike into the prepared hole in the body of the box so that it fits between the ribs of the duct. The duct can be rotated but cannot be pulled out. Sealing is guaranteed by the O-ring. The box is capped with a 125 mm lid for securing. After Installing Drywall and Painting Place the box into the cut-out hole so that its outer collar rests against the upper edge of the drywall. The duct must not exert pressure on the box or the drywall. Insert the neck supplied with the outlet into the box. The collar of the neck is secured with screws through the drywall into the collar of the box. The design plate of the outlet can be easily attached to the neck using magnets (for the LUFTOMET® Sky, Jet, and Lumen outlets). Packaging Includes: Plastic box made of PP-R material, 125 mm lid, two locking spikes, one sealing ring for ducting. Packed loosely into the box. The outlet, including the neck/mounting frame, is not included in the packaging. Manufactured in the Czech Republic.

The LUFTooL Duct air handling products speed up and simplify the installation and maintenance of ventilation systems with heat recovery. They are designed for star-pipeline ventilation systems made of plastic corrugated flexible pipes with an outer diameter of 75 and 90 mm. We offer products for both hobby use and professionals.  Our Duct Cutters: • save material, time, and effort. Don’t waste time endlessly refinishing plastic pipes. • cut pipes between ribs cleanly, effortlessly, and without burrs. The pipe is then ideally prepared for use with other fittings, plenum boxes, etc. • in hobby variant they ensure trouble-free cutting for hundreds of pipe cuts. • are equipped with a long-lasting Fiskars blade. The blades of the Hobby version are non-changeable. • are designed for DALFEX pipes in the basic version. Other types of pipes may differ in ribbing. • and their body and cover of a blade are made of PETG, plastic zip ties are made of polyamide • for or corporate & bulk orders, the size can be customized, the cutter can be equipped with your own logo, and produced in your brand colours. Package includes: Cutter and manual. Packed in a plastic bag.

The automatic damper module is part of the LUFTooL Distribute series. The damper enables automatic control and, together with other elements of the modular system, is used for zoning ventilation with heat recovery in family houses, apartments and small businesses. The system can be used for both supply and exhaust air with flow rates up to 100 m3/h in one branch. The LUFTooL Distribute system is: • an innovative system for distributing air flow into individual zones/rooms • modular (its components can be combined) • designed for flexible plastic pipes with a diameter of 75 and 90 mm and traditional SPIRO pipes of 100 mm • designed for ventilation in family houses and small businesses with air flows through individual branches up to 100 m3/h • a very tight system achieves tightness class D according to ČSN EN 15727 • suitable for the supply and exhaust of commonly polluted air (without chemicals, etc.) • fully cleanable, brushes can be pulled through the damper without dismantling the damper module • made of ABS and PETG The package contains: A plastic molding of the damper body (ABS) fitted with a damper blade and damper axis (PETG). A calibrated servo drive is mounted on the module body in the closed position. Instructions. Unlike the illustration, the package does not contain a blue cover. Packed in a plastic bag. The damper module can be screwed on one side, e.g. to: LUFTooL connectors (LF-CO-125) - which are inserted into the distribution box LUFTOMET® Flat boxes On the other hand, the module is ready for connection to LUFTooL pipe sockets: LT-SP-75-F....LUFTooL Spigot pipe socket (75 mm, female) LT-SP-90-F....LUFTooL Spigot pipe socket (90 mm, female) LT-SP-100-F....LUFTooL Spigot pipe socket (100 mm, female) (spout for traditional SPIRO pipes, white plastic or flexible SONO, Mastersan, etc. pipes, dimension 100 mm) Installation examples 1) installation via the connector to the distribution box - regulates the air flow coming out of the distribution box 2) installation in front of the LUFTOMET Flat box - regulates the air flow before the outlet Characteristics servo drive Operating voltage: 4.8 - 6.0 V Gear material: metal (first gear from the motor plastic) Dimensions: 23 x 12 x 29 mm Standing torque: 1.8 kg/cm (4.8 V); 2.2 kg/cm (6.0 V) Temperature range: 10 to +50°C Weight: 13.5 grams Wire length: 175 mm Rotation tolerance: ± 8% Controlling the damper module To control the damper module, you can purchase the LUFTaTOR API12 control module - this is software and a control board that allows you to control up to 12 dampers using the HTTP REST API. !!! In the case of control by your own system, the servo drive is not guaranteed. Basic requirements for system operation: - max. air flow through one fully open damper is 100 m3/h. Depending on the position of the damper and the percentage of its closure, the maximum allowed flow rate (LFmax) is reduced proportionally. The air flow rate through one or more distribution boxes (PBmax) generated by the heat recovery unit in one direction (supply/exhaust) must not exceed the sum of the maximum flows of all dampers PBmax < ΣLFmax - air temperature flowing through the damper 10-40°C - air temperature around the actuator and control board 10-40°C, humidity 30-90% RH - it is always necessary to maintain access to the control board and actuators for possible replacement Service To clean the piping system, the damper blade can be easily removed through a conveniently located service opening from the distribution box. To remove the damper axis and the outer part with the actuator, it is necessary to remove two screws using a Phillips screwdriver. The damper body and the neck do not need to be removed.

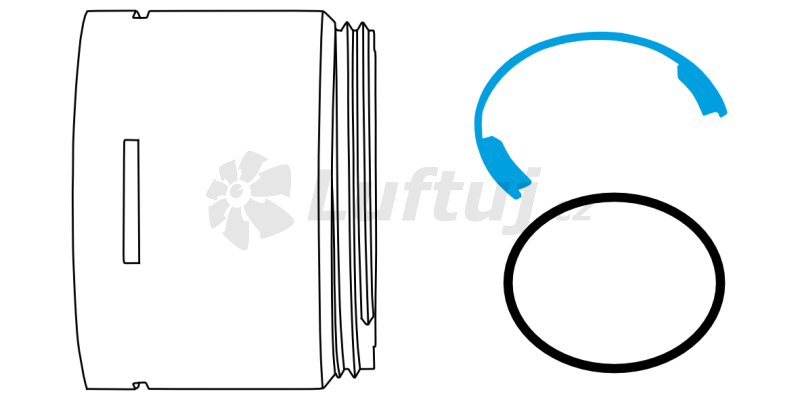

The flexible pipe socket with an outer diameter of 90 mm is a universal modular element from the LUFTooL Distribute series. It consists of components that can be screwed together quickly and tightly into various units. The LUFTooL Distribute system is: • an innovative system for distributing air flow into individual zones/rooms • modular (its components can be combined) • designed for flexible plastic pipes with a diameter of 75 and 90 mm and traditional SPIRO pipes of 100 mm • designed for ventilation in family houses and small businesses with air flows through individual branches up to 100 m3/h • a very tight system achieves class D tightness according to ČSN EN 15727 • suitable for the supply and exhaust of commonly polluted air (without chemicals, etc.) • fully cleanable, pulling brushes through the damper can be done without dismantling the damper module • made of ABS and PETG Package includes: Plastic molding of the neck body (ABS), sealing and locking ring (PETG). Packed in a plastic bag. Dimensions: The spigot can be screwed on one side, for example, to: LUFTooL connectors (LF-CO-125) - which are inserted into the distribution box LUFTOMET® Flat boxes LUFTooL damper module with automatic or manual control Installation examples Mounting via connector or damper module to the distribution box Assembly Screw on the appropriate module. Then put the seal on the pipe, insert it into the spigot and lock it with the blue locking ring.

LUFTool Damper set – is a damper designed for installation on flexible plastic air ducting with an outer diameter of 90 mm. The damper is operated by microservo motor.  LUFTooL Distribute is: An innovative system for distributing airflow to individual zones/rooms. Designed for flexible plastic ducts with a diameter of 90 mm and traditional SPIRO ducting with a diameter of 100 mm. Intended for ventilation in residential homes and small businesses with airflow rates in individual branches up to 100 m³/h. Very tight, achieving a tightness class D according to ČSN EN 15727. Suitable for supplying and extracting normally polluted air (without chemicals, etc.). Fully cleanable, as brushes can be passed through the damper without disassembling the damper module. Made from ABS and PETG materials. LUFTool Damper set includes the following components of the Distribute system: LUFTooL Spigot for Ducting (90 mm, female) LUFTooL Damper module (automatic control) LUFTooL Spigot for Ducting (90 mm, male) Damper Module available in automatic:

The flexible pipe socket with an outer diameter of 90 mm is a universal modular element from the LUFTooL Distribute series. It consists of components that can be screwed together quickly and tightly into various units. The LUFTooL Distribute system is: • an innovative system for distributing air flow into individual zones/rooms • modular (its components can be combined) • designed for flexible plastic pipes with a diameter of 75 and 90 mm and traditional SPIRO pipes of 100 mm • designed for ventilation in family houses and small businesses with air flows through individual branches up to 100 m3/h • a very tight system achieves class D tightness according to ČSN EN 15727 • suitable for the supply and exhaust of commonly polluted air (without chemicals, etc.) • fully cleanable, pulling brushes through the damper can be done without dismantling the damper module • made of ABS and PETG Package includes: Plastic molding of the neck body (ABS), sealing and locking ring (PETG). Packed in a plastic bag. Dimensions: The spigot can be screwed on one side, for example, to: LUFTooL connectors (LF-CO-125) - which are inserted into the distribution box LUFTOMET® Flat boxes LUFTooL damper module with automatic or manual control Installation examples Mounting via connector or damper module to the distribution box Assembly Screw on the appropriate module. Then put the seal on the pipe, insert it into the spigot and lock it with the blue locking ring.
