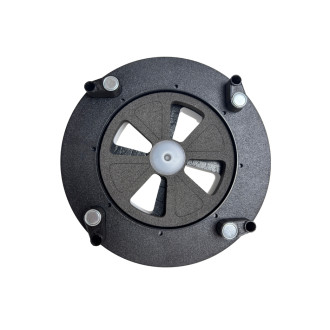

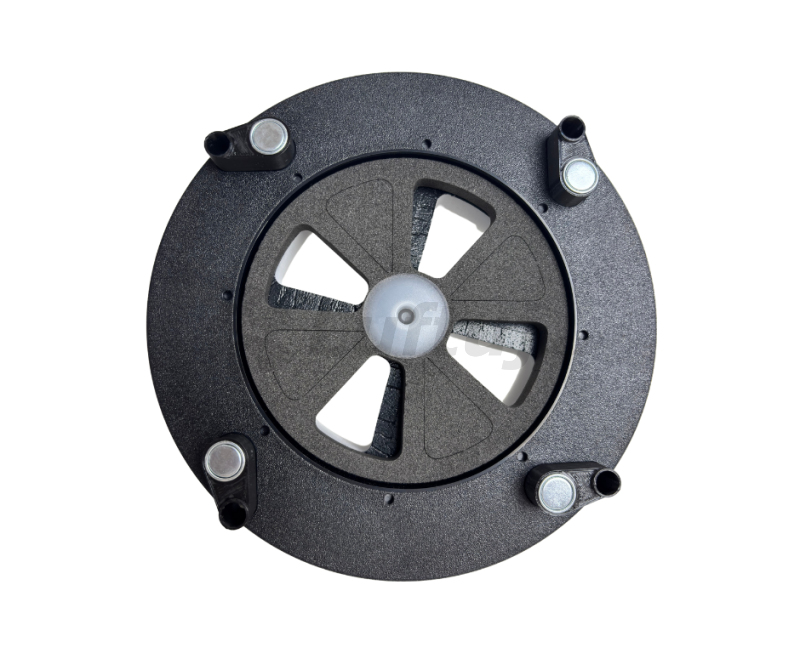

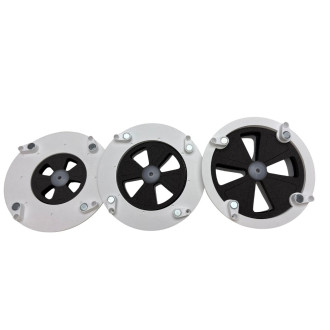

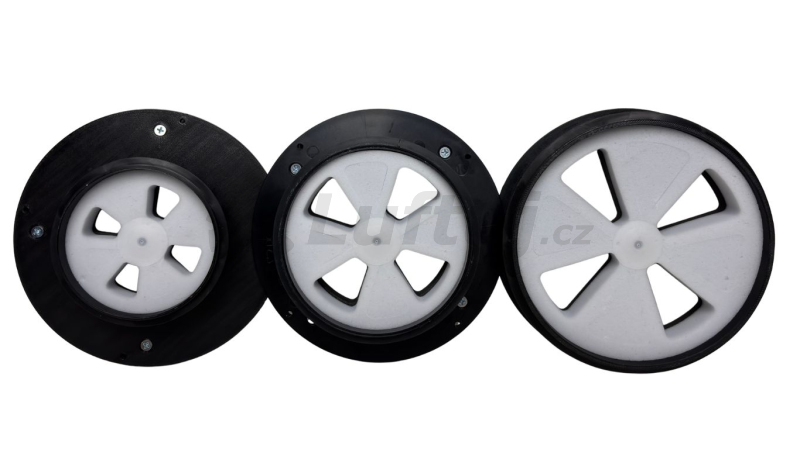

Air volume controller PF with noise dampening effect

The popular LUFTOMET® Round Box with a connection for flexible ducts 90 mm is suitable for installations with a larger installation gap or for passing through constructions, thanks to its tube length of 305 mm. Dimensions: Compatibility: Air outlets - the box is fully compatible with LUFTOMET® Sky, Jet, and Lumen outlets, as well as other outlets with a diameter of 125 mm. Ducts - the neck of the box is designed for accommodating flexible plastic ducts with an external diameter of 90 mm, such as Dalflex, ComfoTube, ED-FLEX, ROZ-DUOTEC, Ubbink Air Excellent, Klimaflex, Octopus AE48c, HEATPEX Aria, Kermi x-well, FLXP, Atera GreenPipe, Lindab Indom, etc. Rough Construction The duct should be cut to the appropriate length (best done using the LUFTooL Duct Cutter), and the box should be anchored to a solid structure (beam, concrete ceiling, etc.) using the prepared brackets. A sealing ring is inserted into the second groove of the duct. The duct is pushed into the neck of the box. The spike is inserted into the prepared hole on the body of the box so that it fits between the ribs of the duct. The duct can be rotated but cannot be pulled out. The seal is guaranteed by the o-ring. The box is cut to the required length and fitted with a 125 mm cover to ensure hygiene. Finishing Phase (after painting, etc.) The outlet is installed into the box and secured to the ceiling structure (drywall, concrete, etc.). The design plate of the outlet can be easily attached to the outlet using magnets (for LUFTOMET® Sky, Jet, and Lumen outlets). Packaging Includes: Plastic box made of PP-R material, 125 mm cover, two locking spikes, one sealing ring for duct. Packaged loosely in a box. The outlet, including the socket/mounting frame, is not included in the package. Made in the Czech Republic.

LUFTOMET® insect screen is a practical accessory for outdoor facade cover that protects the air handling system from insects and small dirt. It is suitable for use on exterior building facades for fresh air intake and air exhaust. Thanks to its sophisticated design, it helps to keep the air handling ducts clean without significantly restricting the air flow. The screen allows for easy inspection, maintenance and replacement and is a practical solution for long-term protection of air handling systems.

Products under the LUFTOMET® Flat name offer a comprehensive system of compatible components – plenum boxes and grilles. The Flat system is designed to solve ventilation needs primarily in wooden buildings and the renovation of family houses and apartments. It is ideal for situations where minimal spatial requirements for the ventilation distribution are essential. Additionally, LUFTOMET® Flat grilles provide an excellent aesthetic solution.

Dimmer for LUFTOMET Lumen 12V Voltage 5-24V. Maximum total power consumption of LED tape or LED bulbs 144W - up to 5 outlets with LUFTOMET Lumen ventilation can be connected. This dimmer has a remote control, with which you can dim the light source either continuously or in larger steps - 100%, 50%, 25%. Alternatively, it can be dimmed using the Bright + and - function. You can also choose between predefined light effects such as flashing, light transitions, etc. In the light effects mode, you can also control their speed. The remote control is powered by 1 CR2025 button cell battery, which is included in the package. You can purchase a spare battery from us. Watch the instructional video on how to connect the dimmer to the rest of the system and how to control it with a remote control.

The popular LUFTOMET® Round Box with connections for flexible ducting of 75 mm or 90 mm is suitable for installation in ceilings, walls, or drywall boxes due to its collar. The box is used in ventilation systems with heat recovery and is designed for installations with a minimum installation gap above the ceiling or where it isn’t possible to secure the ducting directly to the structural framework. Dimensions: Compatibility: Outlets - it is fully compatible with LUFTOMET® Sky, Jet, and Lumen outlets with a diameter of 125 mm. In this combination, the outlet’s neck is directly anchored into the collar of the LUFTOMET® Round Box Low without the need for plugs. Ducting - the neck of the box is designed to accommodate flexible plastic ducts with an outer diameter of 75 mm and 90 mm, such as Dalflex, ComfoTube, ED-FLEX, ROZ-DUOTEC, Ubbink Air Excellent, Klimaflex, Octopus AE48c, HEATPEX Aria, Kermi x-well, FLXP, Atera GreenPipe, Lindab Indom, etc. Installation Procedure: Rough Construction Cut the duct to the appropriate length (preferably using the LUFTooL Duct Cutter) and secure it approximately 1 meter from the planned outlet position. A sealing ring is placed into the second groove of the duct. Slide the duct into the neck of the box. Insert the spike into the prepared hole in the body of the box so that it fits between the ribs of the duct. The duct can be rotated but cannot be pulled out. Sealing is guaranteed by the O-ring. The box is capped with a 125 mm lid for securing. After Installing Drywall and Painting Place the box into the cut-out hole so that its outer collar rests against the upper edge of the drywall. The duct must not exert pressure on the box or the drywall. Insert the neck supplied with the outlet into the box. The collar of the neck is secured with screws through the drywall into the collar of the box. The design plate of the outlet can be easily attached to the neck using magnets (for the LUFTOMET® Sky, Jet, and Lumen outlets). Packaging Includes: Plastic box made of PP-R material, 125 mm lid, two locking spikes, one sealing ring for ducting. Packed loosely into the box. The outlet, including the neck/mounting frame, is not included in the packaging. Manufactured in the Czech Republic.
