LUFtooL Damper set for Pipes Manual 90 mm

Products under the LUFTOMET® Flat name offer a comprehensive system of compatible components – plenum boxes and grilles. The Flat system is designed to solve ventilation needs primarily in wooden buildings and the renovation of family houses and apartments. It is ideal for situations where minimal spatial requirements for the ventilation distribution are essential. Additionally, LUFTOMET® Flat grilles provide an excellent aesthetic solution.

The popular LUFTOMET® Round Box with connections for flexible ducting of 75 mm or 90 mm is suitable for installation in ceilings, walls, or drywall boxes due to its collar. The box is used in ventilation systems with heat recovery and is designed for installations with a minimum installation gap above the ceiling or where it isn’t possible to secure the ducting directly to the structural framework. Dimensions: Compatibility: Outlets - it is fully compatible with LUFTOMET® Sky, Jet, and Lumen outlets with a diameter of 125 mm. In this combination, the outlet’s neck is directly anchored into the collar of the LUFTOMET® Round Box Low without the need for plugs. Ducting - the neck of the box is designed to accommodate flexible plastic ducts with an outer diameter of 75 mm and 90 mm, such as Dalflex, ComfoTube, ED-FLEX, ROZ-DUOTEC, Ubbink Air Excellent, Klimaflex, Octopus AE48c, HEATPEX Aria, Kermi x-well, FLXP, Atera GreenPipe, Lindab Indom, etc. Installation Procedure: Rough Construction Cut the duct to the appropriate length (preferably using the LUFTooL Duct Cutter) and secure it approximately 1 meter from the planned outlet position. A sealing ring is placed into the second groove of the duct. Slide the duct into the neck of the box. Insert the spike into the prepared hole in the body of the box so that it fits between the ribs of the duct. The duct can be rotated but cannot be pulled out. Sealing is guaranteed by the O-ring. The box is capped with a 125 mm lid for securing. After Installing Drywall and Painting Place the box into the cut-out hole so that its outer collar rests against the upper edge of the drywall. The duct must not exert pressure on the box or the drywall. Insert the neck supplied with the outlet into the box. The collar of the neck is secured with screws through the drywall into the collar of the box. The design plate of the outlet can be easily attached to the neck using magnets (for the LUFTOMET® Sky, Jet, and Lumen outlets). Packaging Includes: Plastic box made of PP-R material, 125 mm lid, two locking spikes, one sealing ring for ducting. Packed loosely into the box. The outlet, including the neck/mounting frame, is not included in the packaging. Manufactured in the Czech Republic.

The LUFTooL Duct air handling products speed up and simplify the installation and maintenance of ventilation systems with heat recovery. They are designed for star-pipeline ventilation systems made of plastic corrugated flexible pipes with an outer diameter of 75 and 90 mm. We offer products for both hobby use and professionals.  Our Duct Cutters: • save material, time, and effort. Don’t waste time endlessly refinishing plastic pipes. • cut pipes between ribs cleanly, effortlessly, and without burrs. The pipe is then ideally prepared for use with other fittings, plenum boxes, etc. • in hobby variant they ensure trouble-free cutting for hundreds of pipe cuts. • are equipped with a long-lasting Fiskars blade. The blades of the Hobby version are non-changeable. • are designed for DALFEX pipes in the basic version. Other types of pipes may differ in ribbing. • and their body and cover of a blade are made of PETG, plastic zip ties are made of polyamide • for or corporate & bulk orders, the size can be customized, the cutter can be equipped with your own logo, and produced in your brand colours. Package includes: Cutter and manual. Packed in a plastic bag.

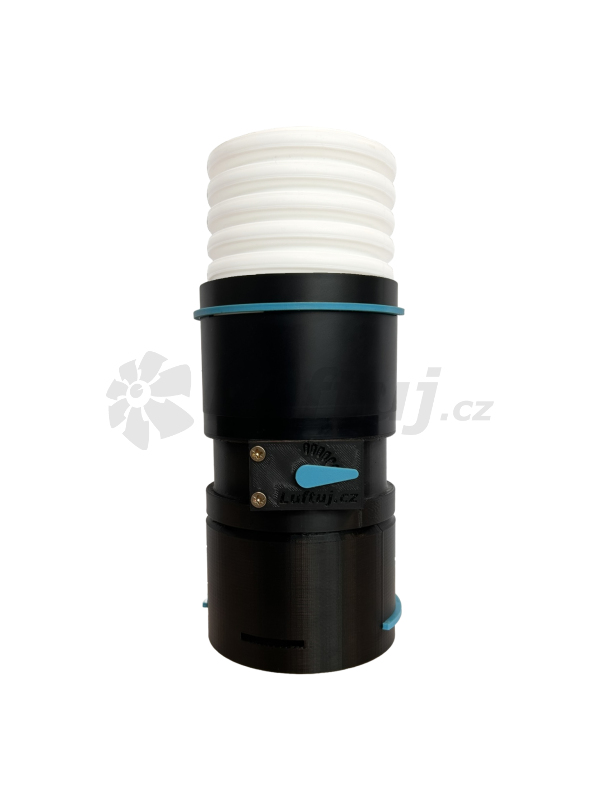

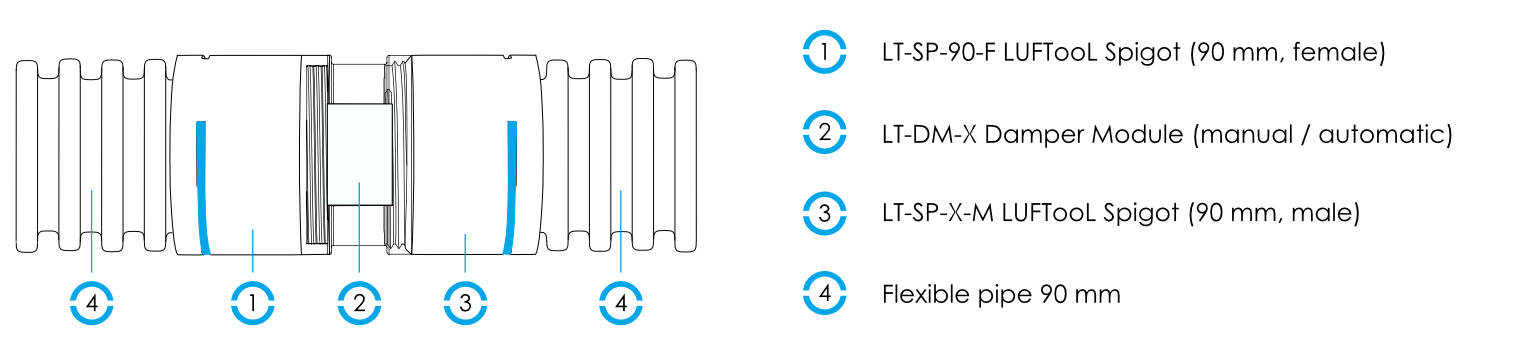

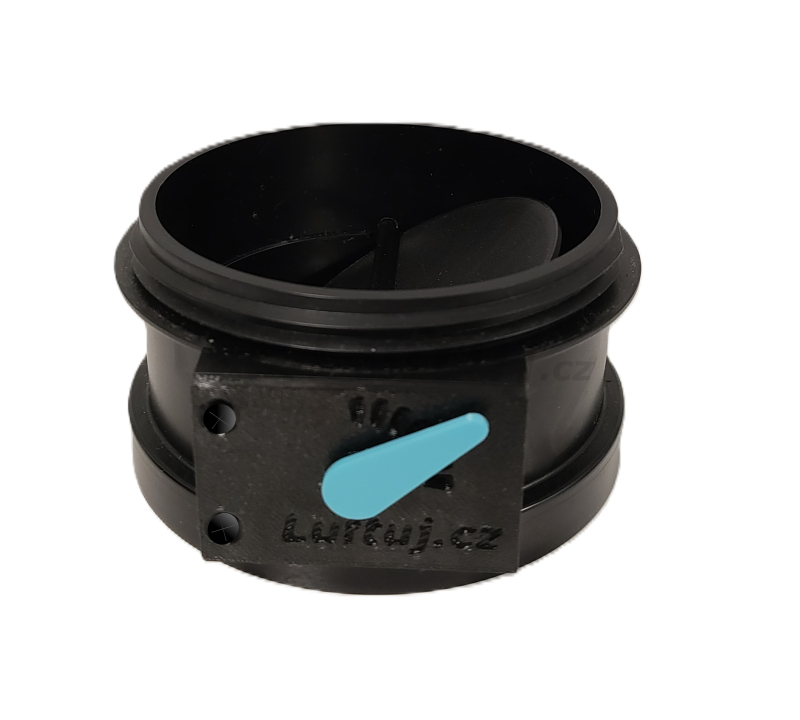

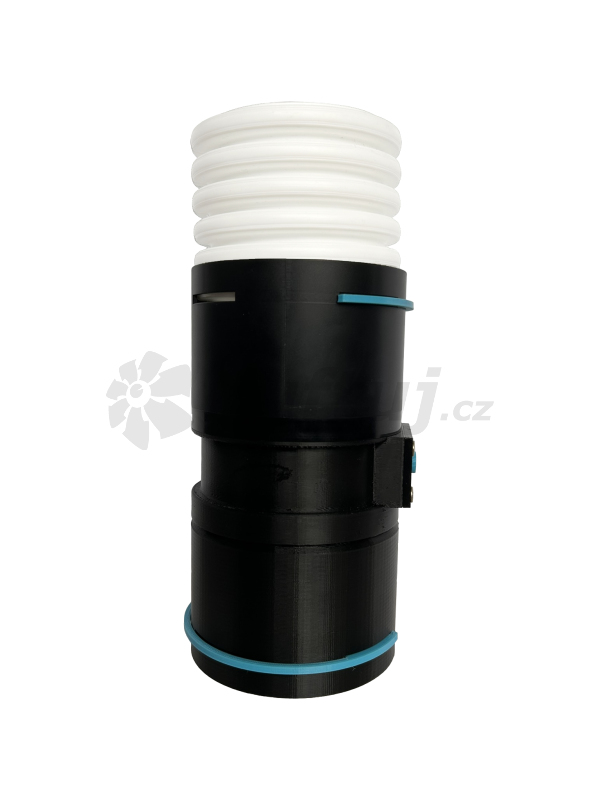

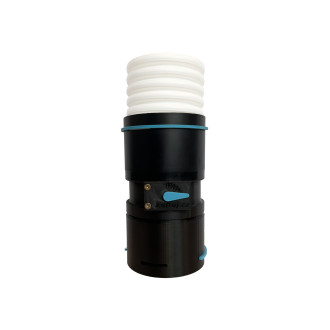

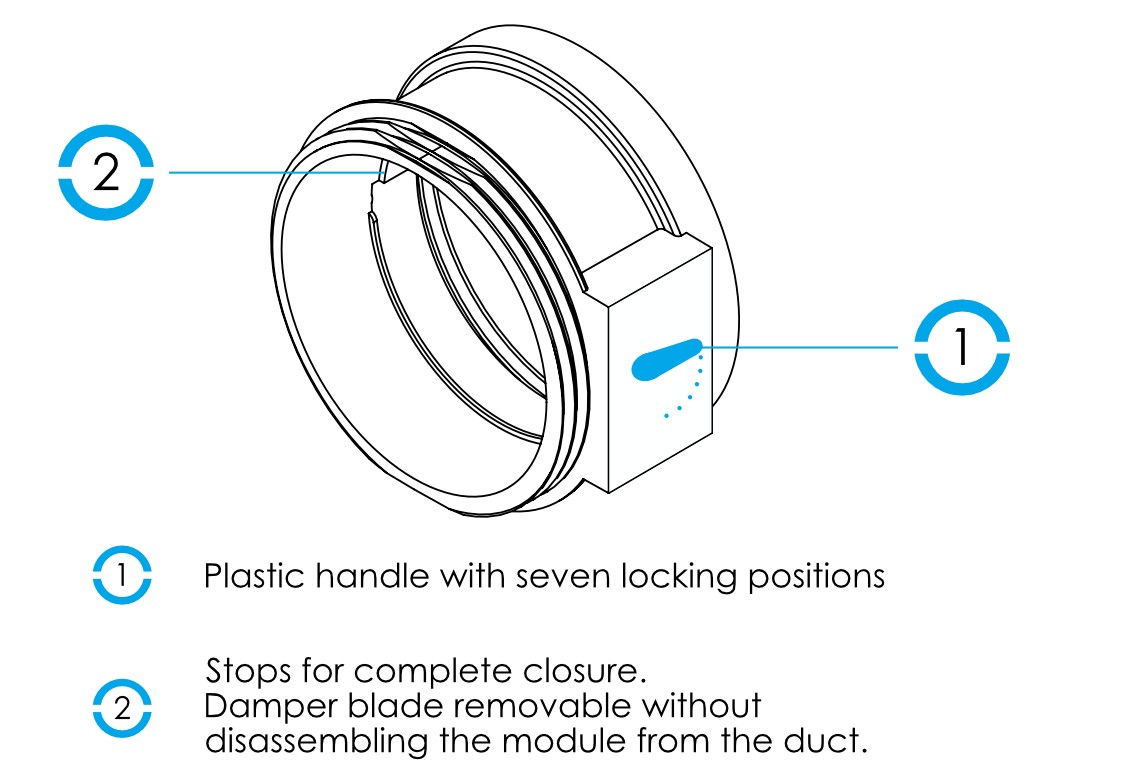

LUFTool Damper set – is a damper designed for installation on flexible plastic air ducting with an outer diameter of 90 mm. The damper is operated by microservo motor.  LUFTooL Distribute is: An innovative system for distributing airflow to individual zones/rooms. Designed for flexible plastic ducts with a diameter of 90 mm and traditional SPIRO ducting with a diameter of 100 mm. Intended for ventilation in residential homes and small businesses with airflow rates in individual branches up to 100 m³/h. Very tight, achieving a tightness class D according to ČSN EN 15727. Suitable for supplying and extracting normally polluted air (without chemicals, etc.). Fully cleanable, as brushes can be passed through the damper without disassembling the damper module. Made from ABS and PETG materials. LUFTool Damper set includes the following components of the Distribute system: LUFTooL Spigot for Ducting (90 mm, female) LUFTooL Damper module (automatic control) LUFTooL Spigot for Ducting (90 mm, male) Damper Module available in automatic:

LUFTooL Trap products are designed to collect condensed water on the inside of the pipe in the ventilation systems. They are usually installed on pipes that blow air from the interior through the unheated part of the house. The condensation piece drains condensate from the duct walls outside the duct. Our Condensing Pieces are: • very tight - designed to save space compared to other condensate collection solutions • equipped with a gutter elbow that is compatible with conventional condensate drainage hoses • made of PETG material, thus minimising the formation of thermal bridges • designed to be installed in vertical and horizontal pipes (horizontal pipes must always be in a gradient towards the drain) • efficient, depending on the flow rate and type of pipe material, they are able to collect up to 91% of condensed moisture • manufactured in three variants (for EPE, EPS and SPIRO pipes) Made of PETG material: • which is a flexible and strong material • has high impact resistance and durability • is made from health-safe materials • has low shrinkage on cooling • is 100% recyclable Package includes: Condensation piece, 2 sealing rings for the SPIRO version, manual. Packed in a box or foil

The SPIRO pipe connector with a diameter of 100 mm is a universal modular element from the LUFTooL Distribute series. It consists of components that can be quickly and tightly screwed together into various units. The LUFTooL Distribute system is: • an innovative system for distributing air flow into individual zones/rooms • modular (its components can be combined) • designed for flexible plastic pipes with a diameter of 75 and 90 mm and traditional SPIRO pipes of 100 mm • designed for ventilation in family houses and small businesses with air flows through individual branches up to 100 m3/h • a very tight system achieves class D tightness according to ČSN EN 15727 • suitable for the supply and exhaust of commonly polluted air (without chemicals, etc.) • fully cleanable, brushes can be pulled through the damper without dismantling the damper module • made of ABS and PETG The package contains: Plastic molding of the nozzle body (PETG), T-shaped sealing ring. Packed in a plastic bag. Dimensions: The nozzle can be screwed on one side, e.g. to: LUFTooL connectors (LF-CO-125) - which are inserted into the distribution box LUFTOMET® Flat boxes LUFTooL damper module with automatic or manual control Installation examples Mounting via connector or damper module to the distribution box Mounting Screw on the appropriate module. Then slide the pipe over the seal and secure with a self-tapping screw.
