LUFTooL Spigot for Ducting (100 mm, female)
The SPIRO pipe connector with a diameter of 100 mm is a universal modular element from the LUFTooL Distribute series. It consists of components that can be quickly and tightly screwed together into various units.
The LUFTooL Distribute system is:
• an innovative system for distributing air flow into individual zones/rooms
• modular (its components can be combined)
• designed for flexible plastic pipes with a diameter of 75 and 90 mm and traditional SPIRO pipes of 100 mm
• designed for ventilation in family houses and small businesses with air flows through individual branches up to 100 m3/h
• a very tight system achieves class D tightness according to ČSN EN 15727
• suitable for the supply and exhaust of commonly polluted air (without chemicals, etc.)
• fully cleanable, brushes can be pulled through the damper without dismantling the damper module
• made of ABS and PETG
The package contains:
Plastic molding of the nozzle body (PETG), T-shaped sealing ring.
Packed in a plastic bag.

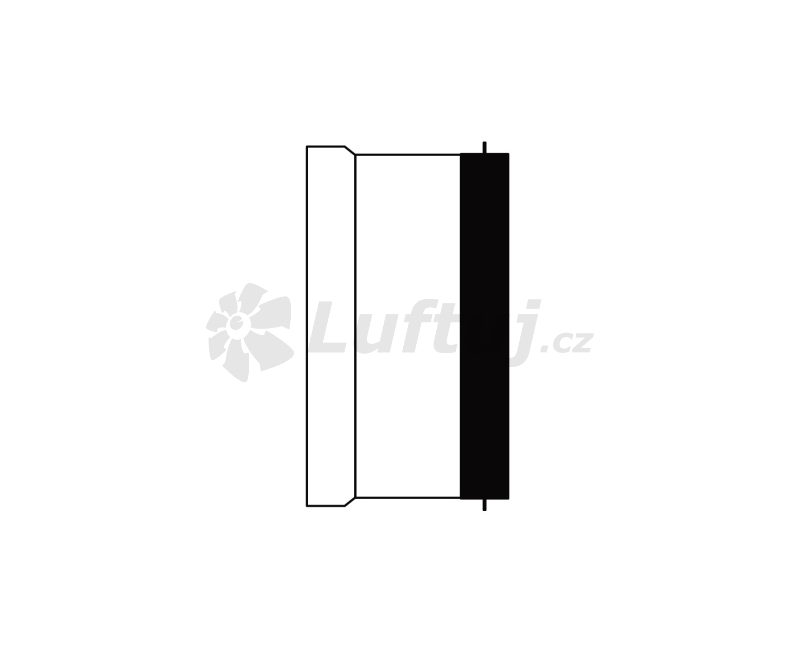

Dimensions:

The nozzle can be screwed on one side, e.g. to:
LUFTooL connectors (LF-CO-125) - which are inserted into the distribution box
LUFTOMET® Flat boxes
LUFTooL damper module with automatic or manual control
Installation examples
Mounting via connector or damper module to the distribution box
Mounting
Screw on the appropriate module. Then slide the pipe over the seal and secure with a self-tapping screw.
Technical Sheet:
